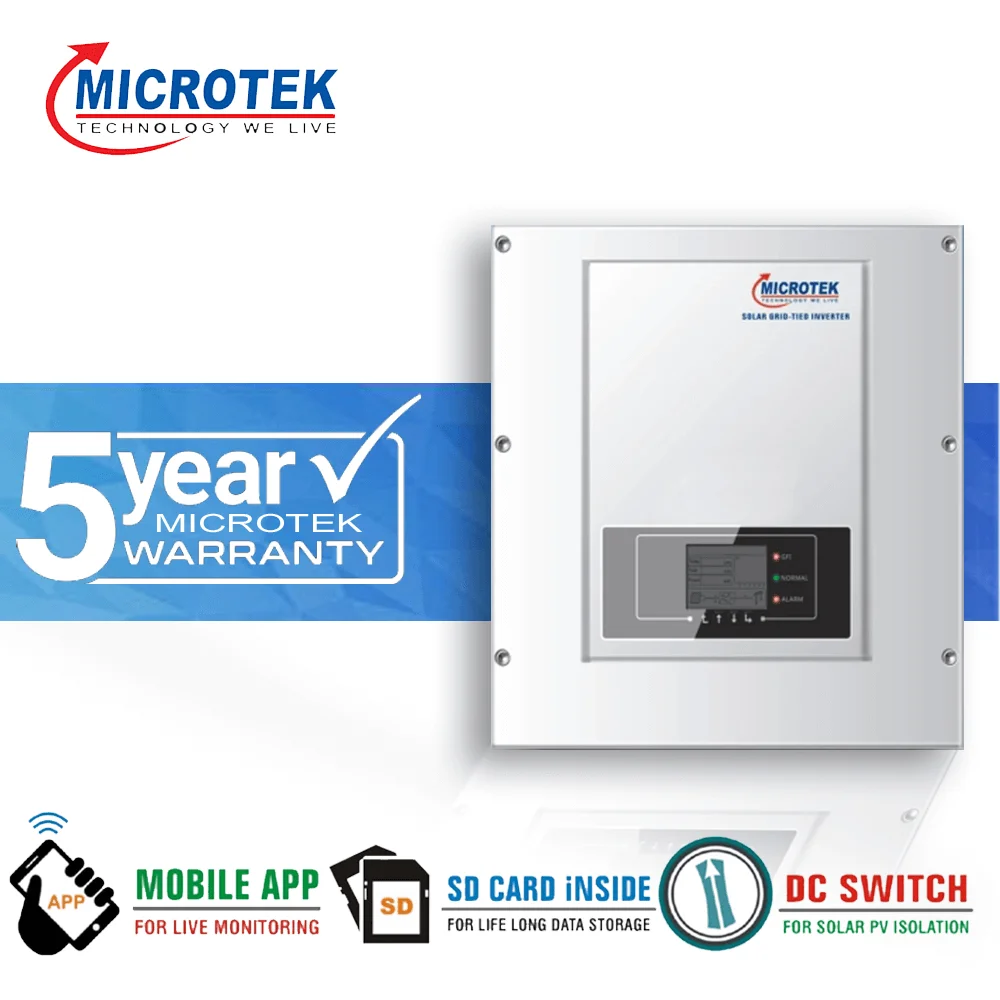

Solar Grid Tie 8.8KW 3-PH -M32
₹82,237₹1,88,500
Shop the Solar Grid Tie 88KW 3-Ph M32 for high-efficiency solar power. Ideal for large commercial and industrial setups. Buy today!
Product Details
Technical Specifications
| MODEL | GTI 8.8KW-M32 |
|---|---|
| Max. Input Power | 9600W |
| Max PV Power for Single MPPT | 8800W (800V-850V) |
| No. Of Independent MPPT | 2 |
| No. of DC Input | 1 For Each MPPT |
| Max. Input Voltage | 1000V |
| Start-Up I/P / Rated I/P Voltage | 180V/ 600V |
| MPPT Voltage Range | 160V-960V |
| Full Load DC Voltage Range | 380V~850V |
| Max. Input Current per MPPT | 11A/11A |
| Max. I/P Short Ckt. Current | 14A Each MPPT |
| Rated Power / Max. AC Power | 8000W/8800VA |
| Max O/P Current | 12.8A |
| Nominal Grid Voltage | 3/N/PE, 230/400V |
| Grid Voltage Range | 184~276V (According to Local Standard) |
| Nominal Frequency (Hz) | 50Hz/60Hz |
| Grid Frequency Range (Hz) | 50Hz+5Hz (According to Local Standard) |
| Active Power Adjustable Range | 0-100% |
| THDi / Power Factor | <3% / 1 (Adjustable+0.8) |
| Power Limit Export | Zero Export or Adjustable Power Limit Export (Optional) |
| Max. Efficiency (DC/AC) | 98.00% |
| European Weighted Efficiency | 97.50% |
| Self Consumption at Night | <1W |
| Feed in Start Power | 45W |
| MPPT Efficiency | >99.9% |
| Certifications | IRC 62116, IEC 61727, IEC 61683, IEC 60068(1.2.14.30), IEC 62109-1/2, CE, CGC, AS4777, AS3100, VDE4107,C10-C11, G83/59 (More Certifications available as per requirement) |
| Degree of Protection | IP65 |
| Power Management Unit | According to the certification and Request |
| Standard Communication Mode | RS485, Wi-Fi (Available), GPRS (Optional), SD Card (Available) |
| Operating Data Storage | 25 Years |
| Operating Temperature | -25°C~+60°C |
| Acoustic Noise | <29dB |
| Allowable Rel. Humidity Range | 0 to Max 100% Non-Condensing |
| Max. Operating Altitude | 2000M |
| Display | LCD Display |
| Dimensions(LxWxH) in MM | 483x452x200 mm |
| Weight | 21 KG |
