★Category

Solar Power Conditioning Units

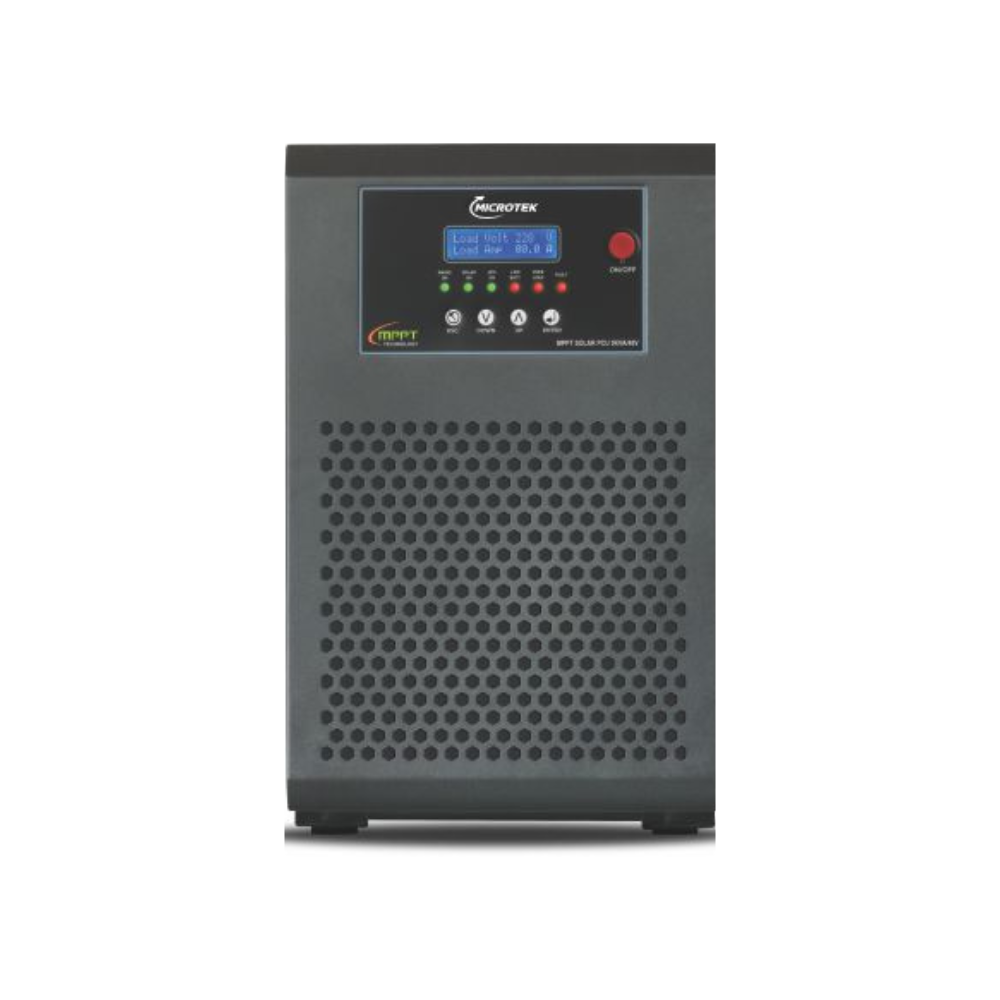

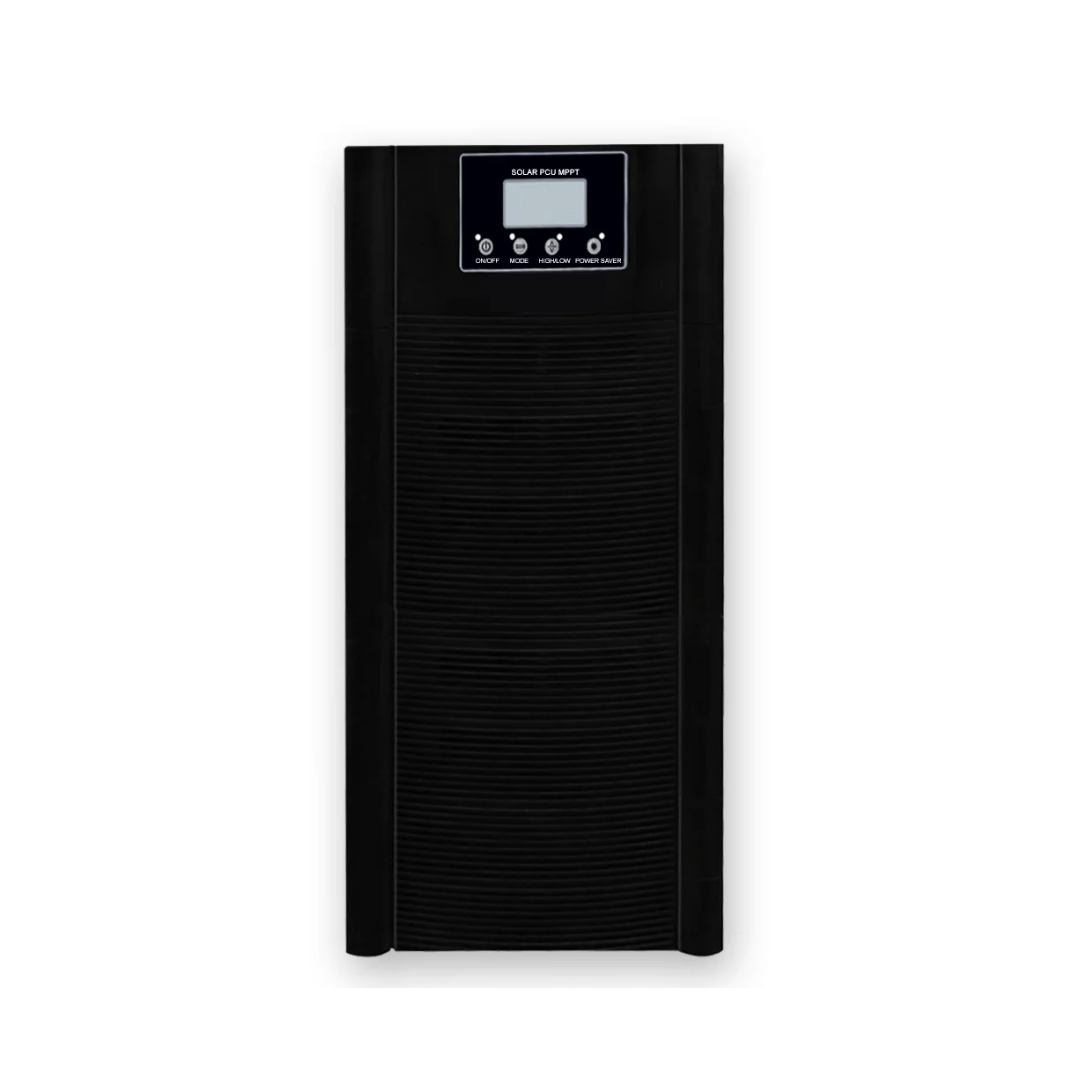

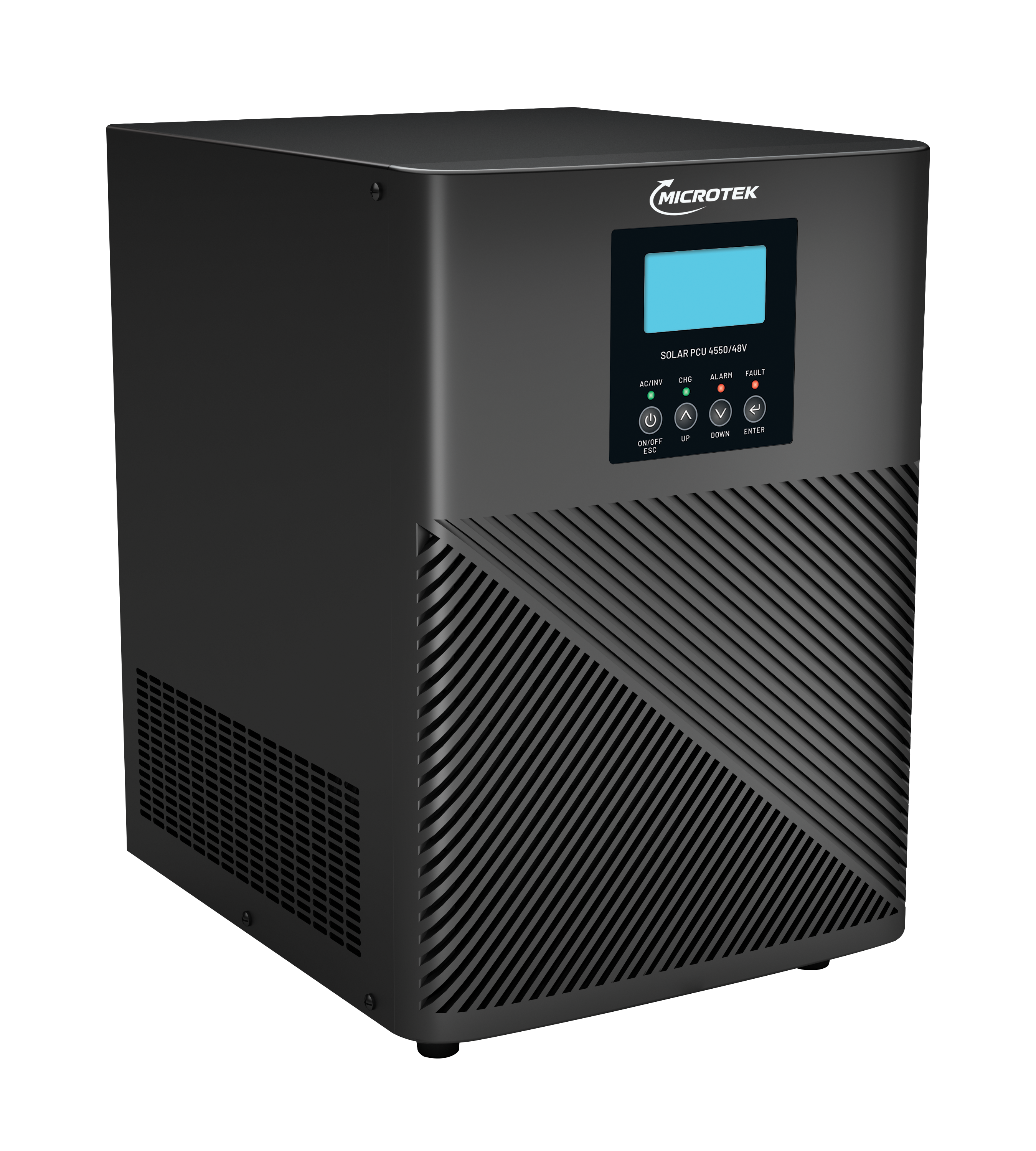

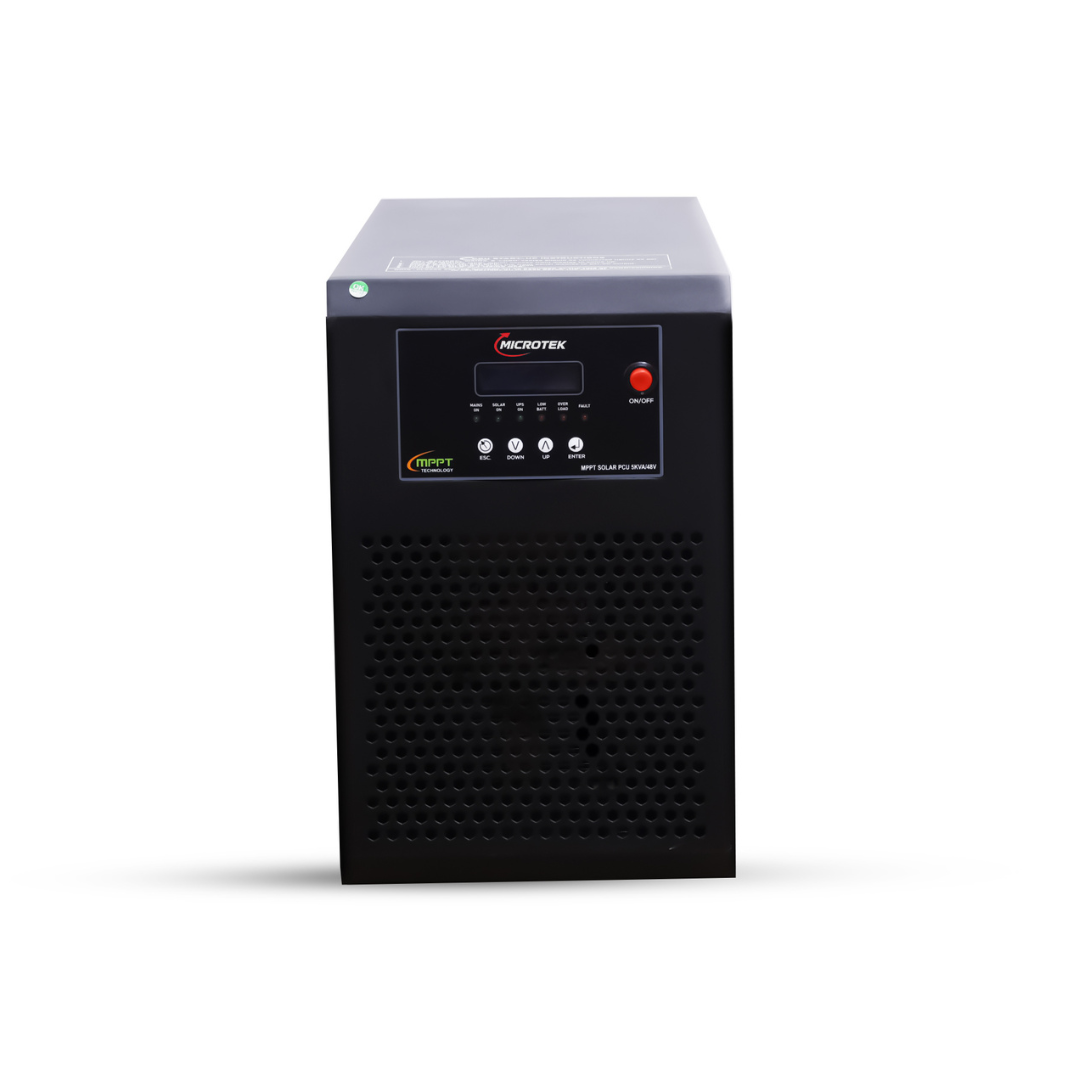

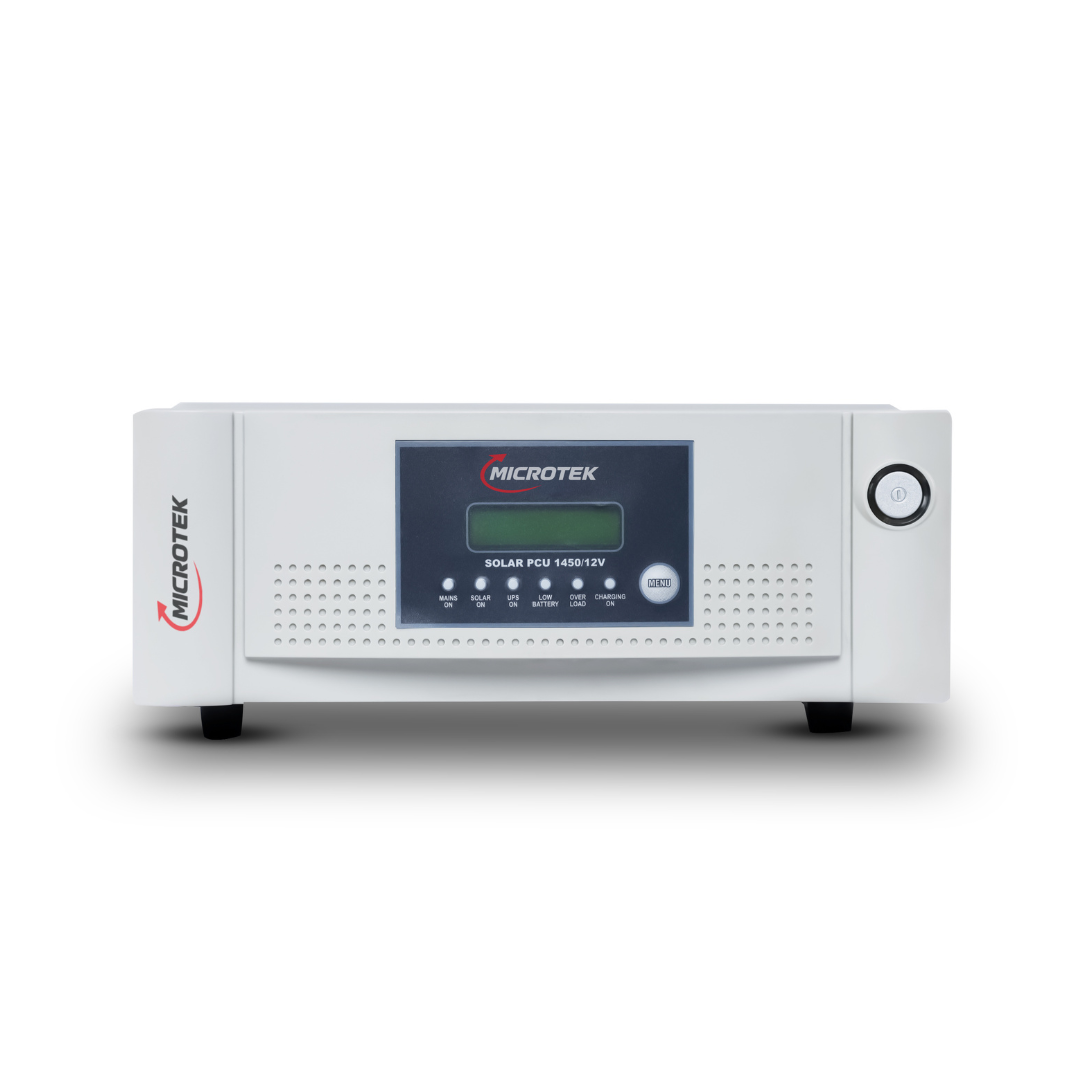

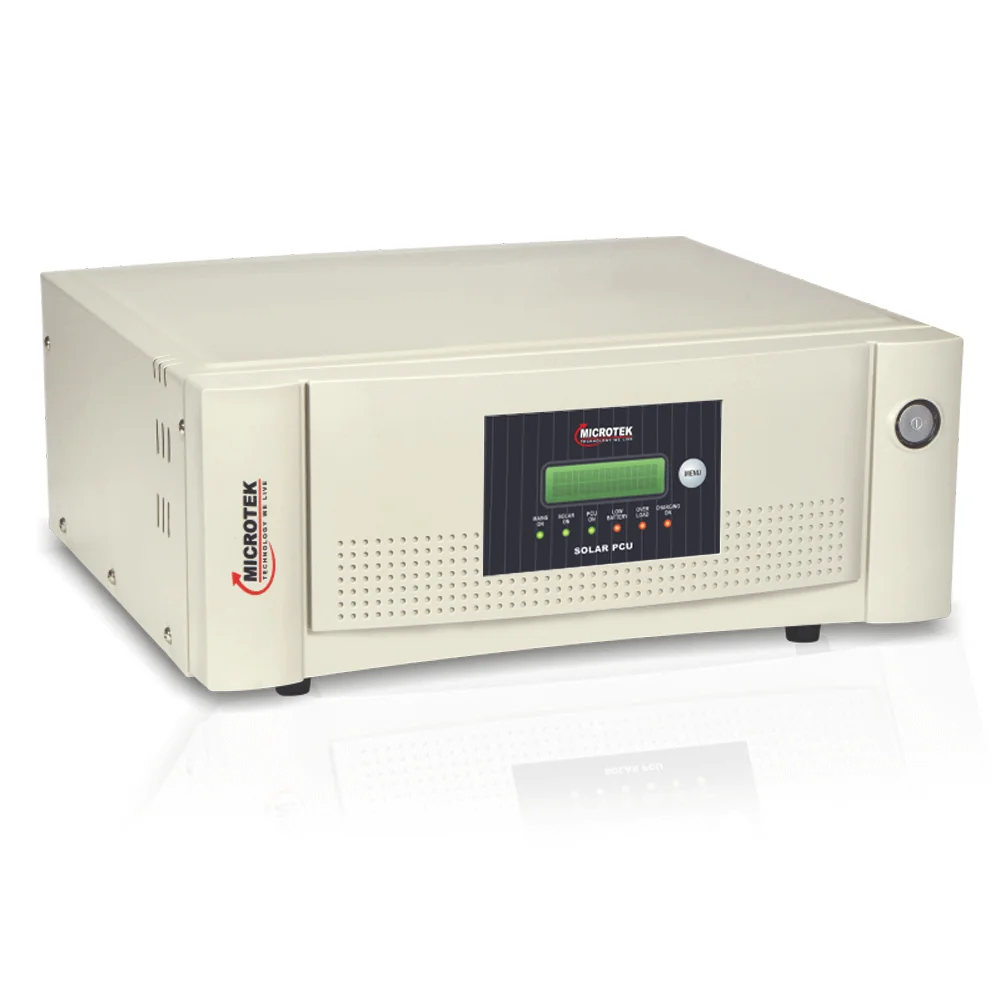

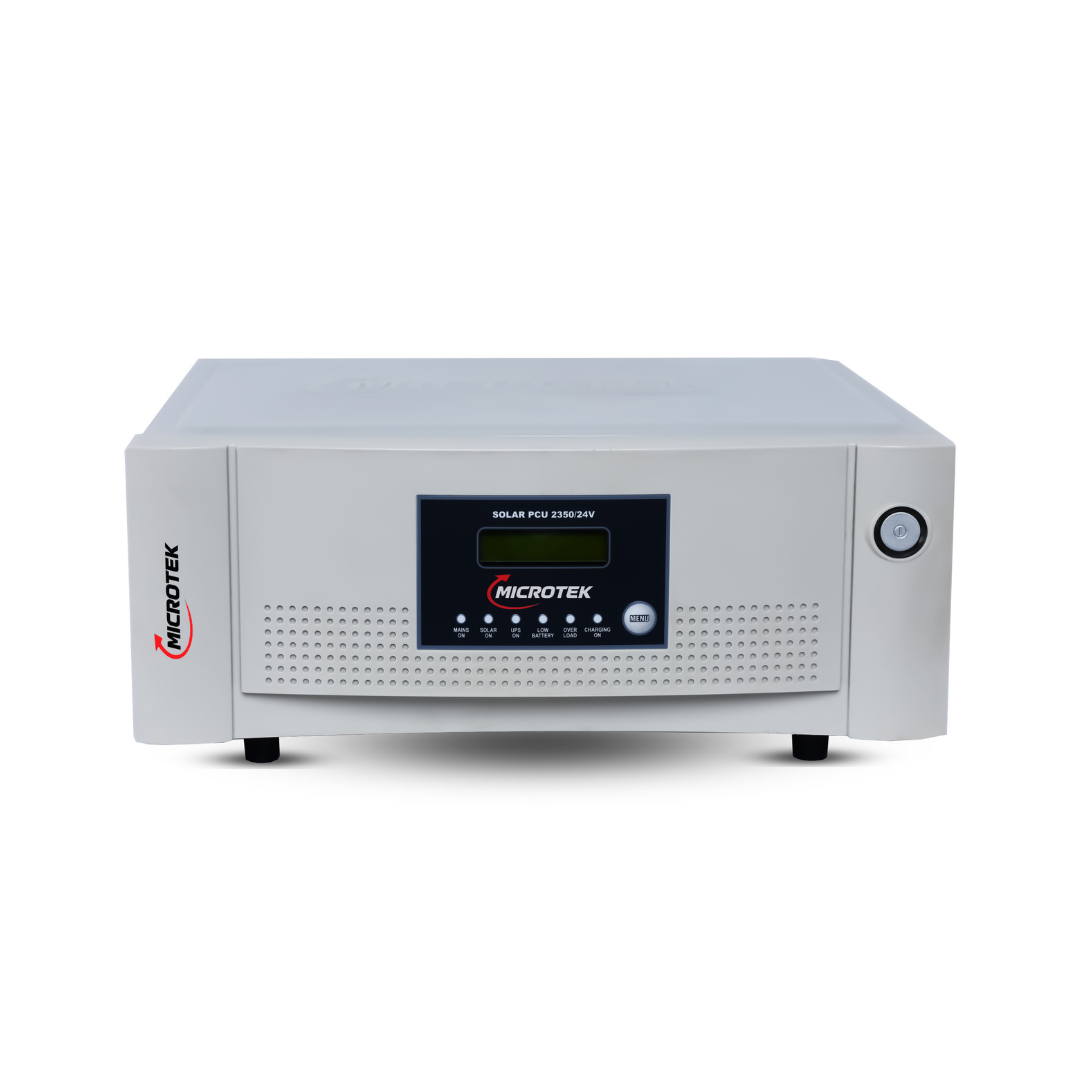

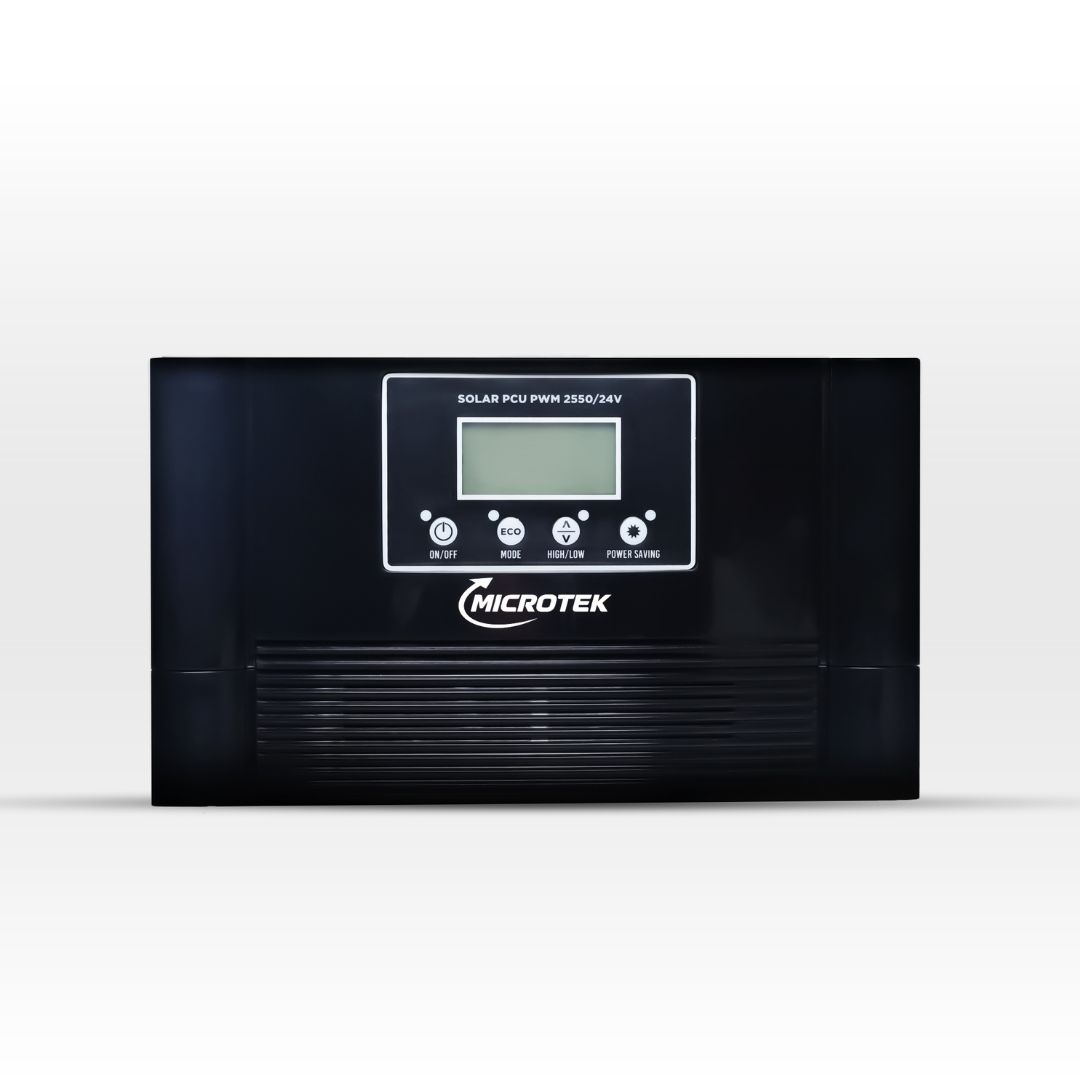

Solar Power Conditioning Units (PCUs) that combine a solar charge controller, inverter and grid management in one box — Microtek's SOLAR PCU and HI-END PWM/MPPT range, roughly 2.2kVA to 7.5kVA. They prioritise free solar power, charge the battery, and keep backup running during cuts — the brain of a hybrid solar system. MPPT models extract more from your panels. Installed and serviced on-site across Delhi NCR.

Models available
9
Price range
₹6,399 – ₹1,04,299
Warranty
2 Years
Capacities
3.2KVA7.5KVA2.2KVA10KVA5KVA3500 VA

Home installation · On-site service & AMC across Delhi NCR

How to choose the right Solar Power Conditioning Units

A PCU is an inverter and a solar charge controller in one box

A Solar Power Conditioning Unit replaces your inverter rather than bolting onto it. It charges the battery bank from the panels, falls back to the grid when the sun is not enough, and runs your backup load — all from one unit with one display. For a home that wants genuine backup and solar together, this is the standard answer.

That also means a PCU is the right purchase when you are replacing an inverter anyway or starting fresh. If you have a healthy inverter and battery you do not want to discard, look at a solar management unit instead, which adds solar charging to what you already own.

PWM versus MPPT, and when the premium is real

PWM and MPPT describe how the unit extracts power from the panels. A PWM controller effectively pulls the panel down to battery voltage, which is simple and cheap but discards some of the available power. An MPPT controller continuously tracks the panel's maximum power point and converts the surplus voltage into extra charging current, so it harvests meaningfully more from the same panels — most of all in weak light, cold mornings and winter smog.

MPPT costs more and earns it back on larger arrays and on higher panel-string voltages, where the gap is widest. On a small array the PWM units in this range remain sensible value. The array you intend to install, not the unit price, should decide which side of that line you are on.

System voltage sets your battery bank

PCUs here run at 24V, 48V, 96V and 120V. As with any inverter, that voltage dictates how many 12V batteries are wired in series — two, four, eight or ten respectively — and that bank is usually the largest single line on a solar quote. It is not optional and cannot be reduced later.

Higher system voltages suit larger loads and larger arrays, and they carry current more efficiently through the cabling. But they commit you to a bigger bank up front. Size the load and the array first, and let those two choose the system voltage rather than the other way round.

Solar duty wears a battery faster than backup duty

This is the part most solar quotes do not dwell on. A backup-only inverter battery is cycled when the power goes out. A battery on a PCU is cycled every single day, because that is the point of the system. Daily cycling uses a lead-acid bank up considerably faster than standby duty does.

So budget for the bank as a recurring cost rather than a one-time one, size it so the daily discharge is shallow rather than deep, and consider whether LiFePO4 — with far greater cycle life — makes better long-run sense for a system that will cycle every day for a decade.

Helpful buying guides

Free, no-jargon advice from our Ashok Vihar shop to help you choose.

Frequently Asked Questions

What does a solar PCU do?

It manages three sources — solar, battery and grid — using solar first to save money, charging the battery, and switching seamlessly so you keep power during outages.

PWM or MPPT?

MPPT charge control harvests noticeably more energy from your panels (especially in winter and partial shade) and suits larger arrays; PWM is simpler and cheaper for small systems. We'll match it to your panel size.

What size PCU should I buy?

It must suit your load and your planned solar and battery capacity — the range runs about 2.2kVA to 7.5kVA. Share your load and roof size and we'll specify it.
