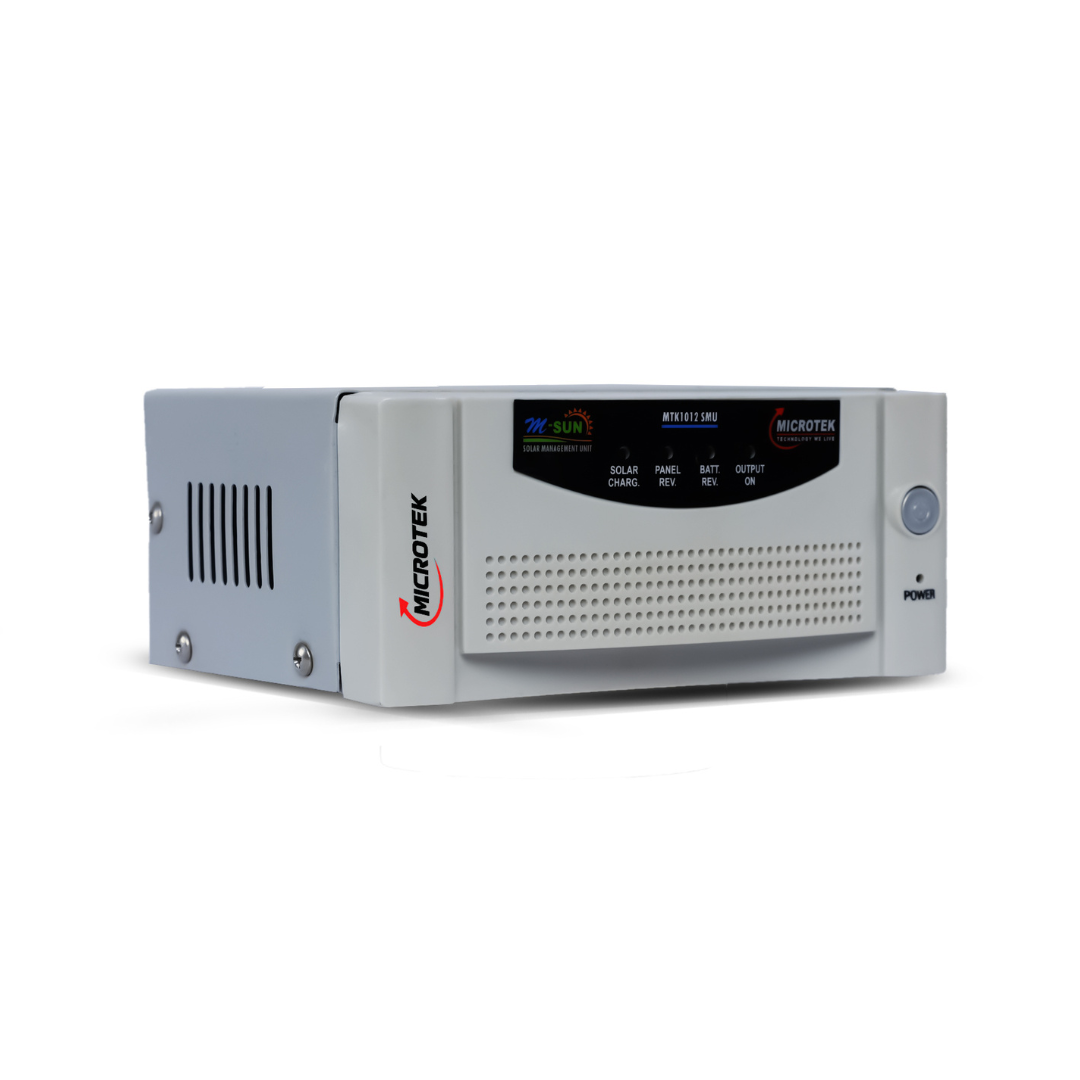

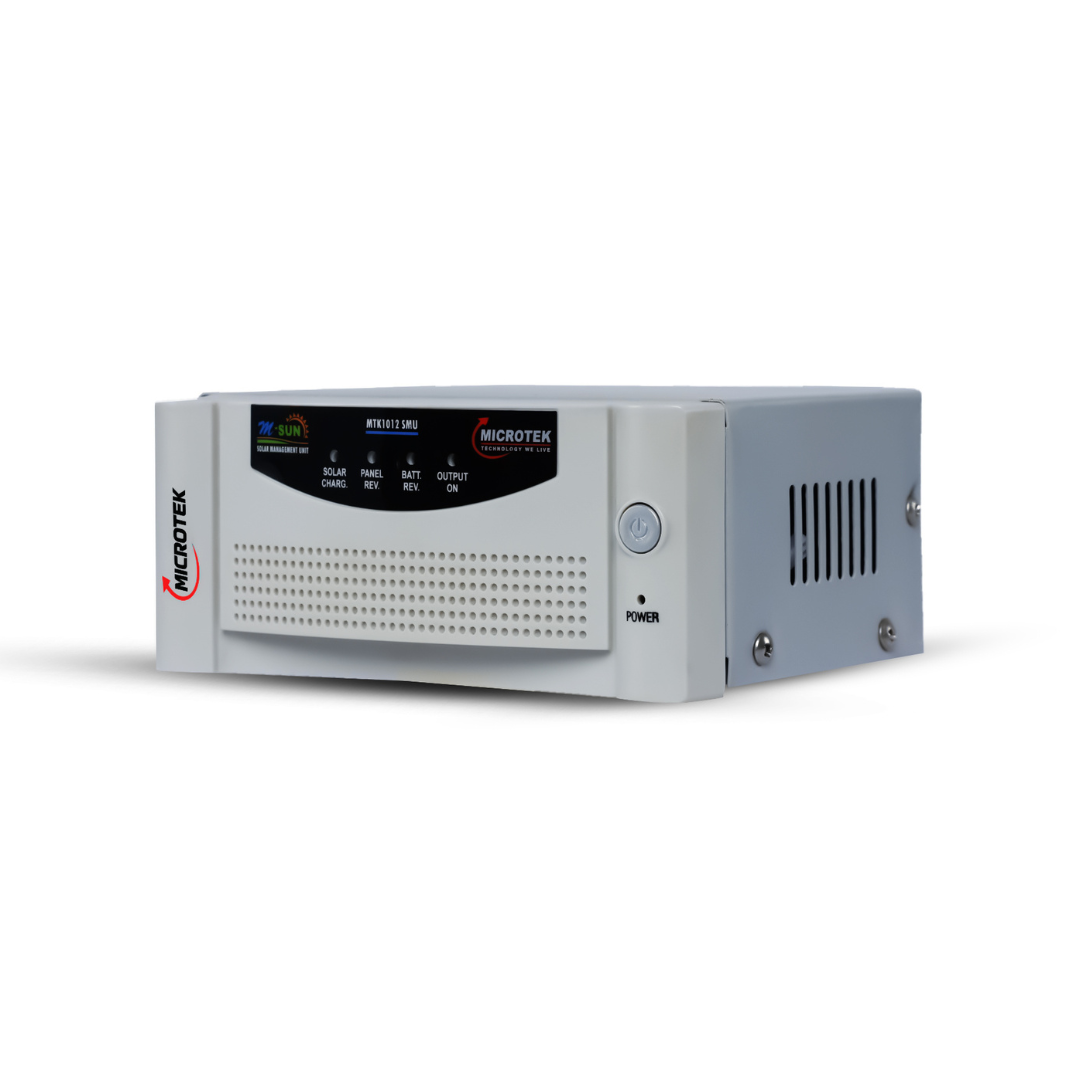

SMU 3024
₹2,399₹4,850

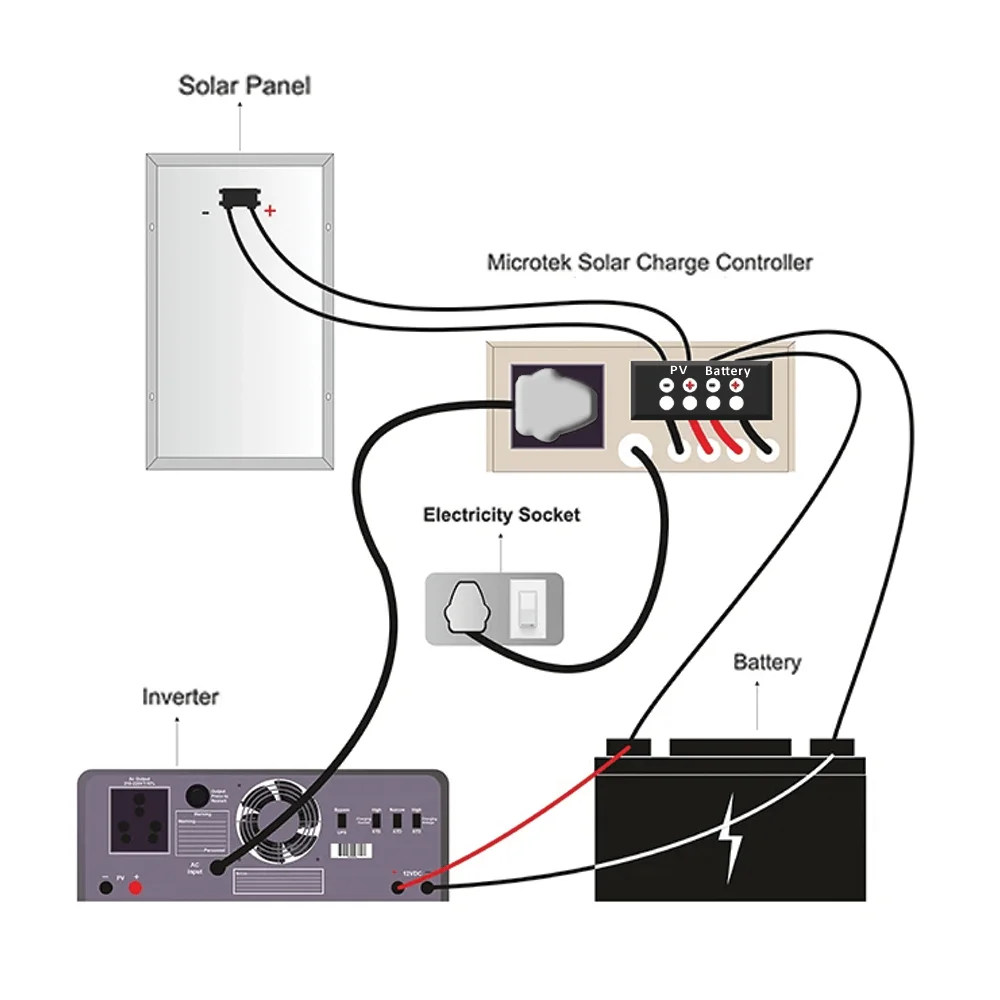

Designed for dependable performance, the SMU 3024 is a solar management unit. In short, it adds solar charging to an inverter you already own. Genuine product, sized and installed at your home, with old-unit exchange and after-sales service throughout Delhi NCR.
Product Details
Technical Specifications
| MODEL NO. | MTK3024 SMU |
|---|---|
| Max.Solar open circuit voltage(Voc) | 40V |
| Max.Solar Panel Capacity | 720Wp |
| Max.Battery Charging Current | 30A |
| Peak Charger Efficiency | 99% |
| System Voltage(V) | 24VDC |
| Battery Full Voltage (Solar Charging) | 29.0±0.4V |
| Battery Voltage (Mains Disconnect) | 28.0±0.4V |
| Battery Voltage (Mains Reconnect) | 23.0±0.4V |
| Recommended Battery Capacity | 2x200AH |
| LCD Indications | Solar Charging, Panel Reverse, Battery Reverse, Output ON |

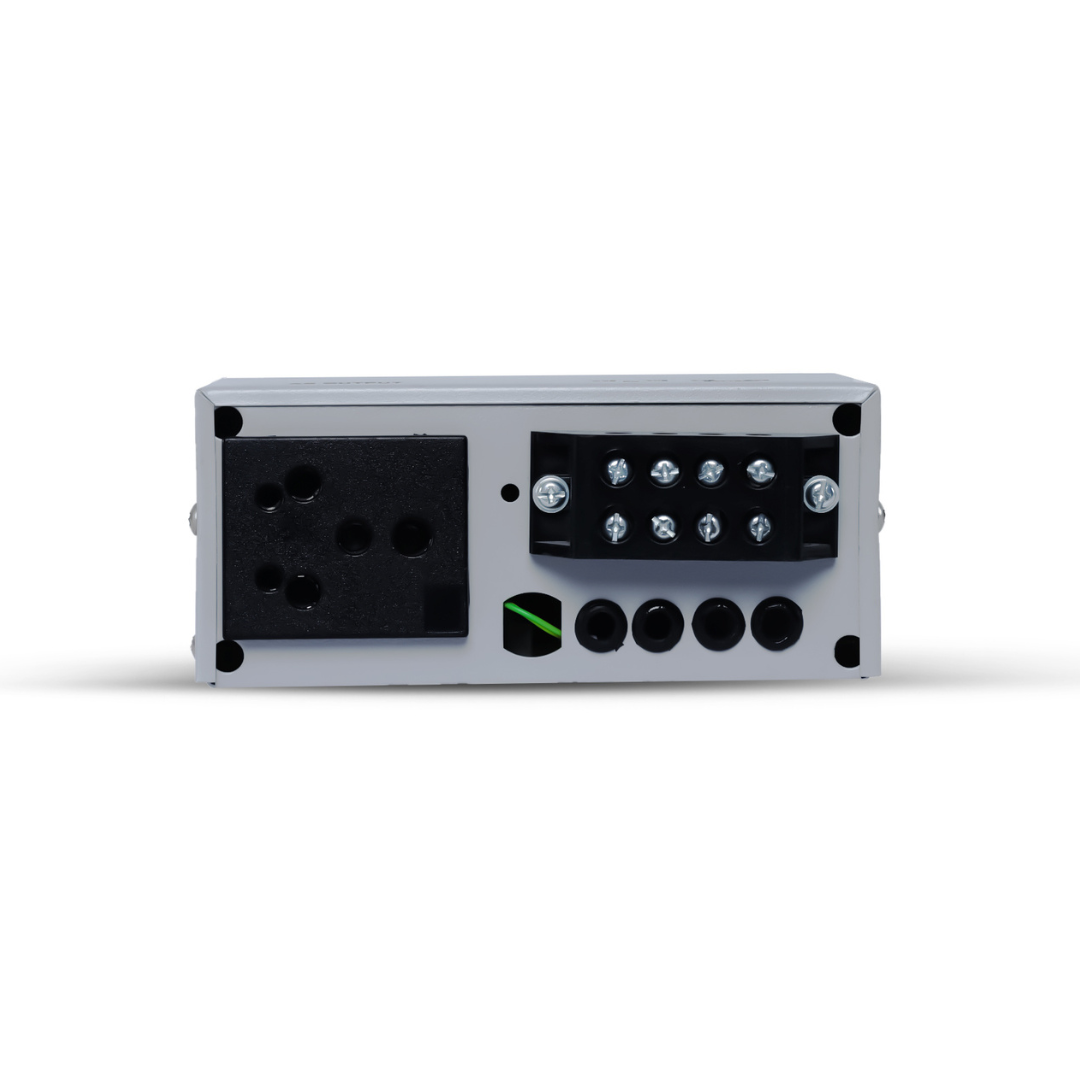

| Connection | TERMINAL BLOCK: For Solar Panel & Battery Connections MAINS IN: 1mm Power Cord With 16A Molded Plug Main Out: 15A Power Outlet |
| Front Panel Switch | NORMAL:Default Position, Solar Charging & Mains Control BYPASS: Solar Charging & Main Bypass |
