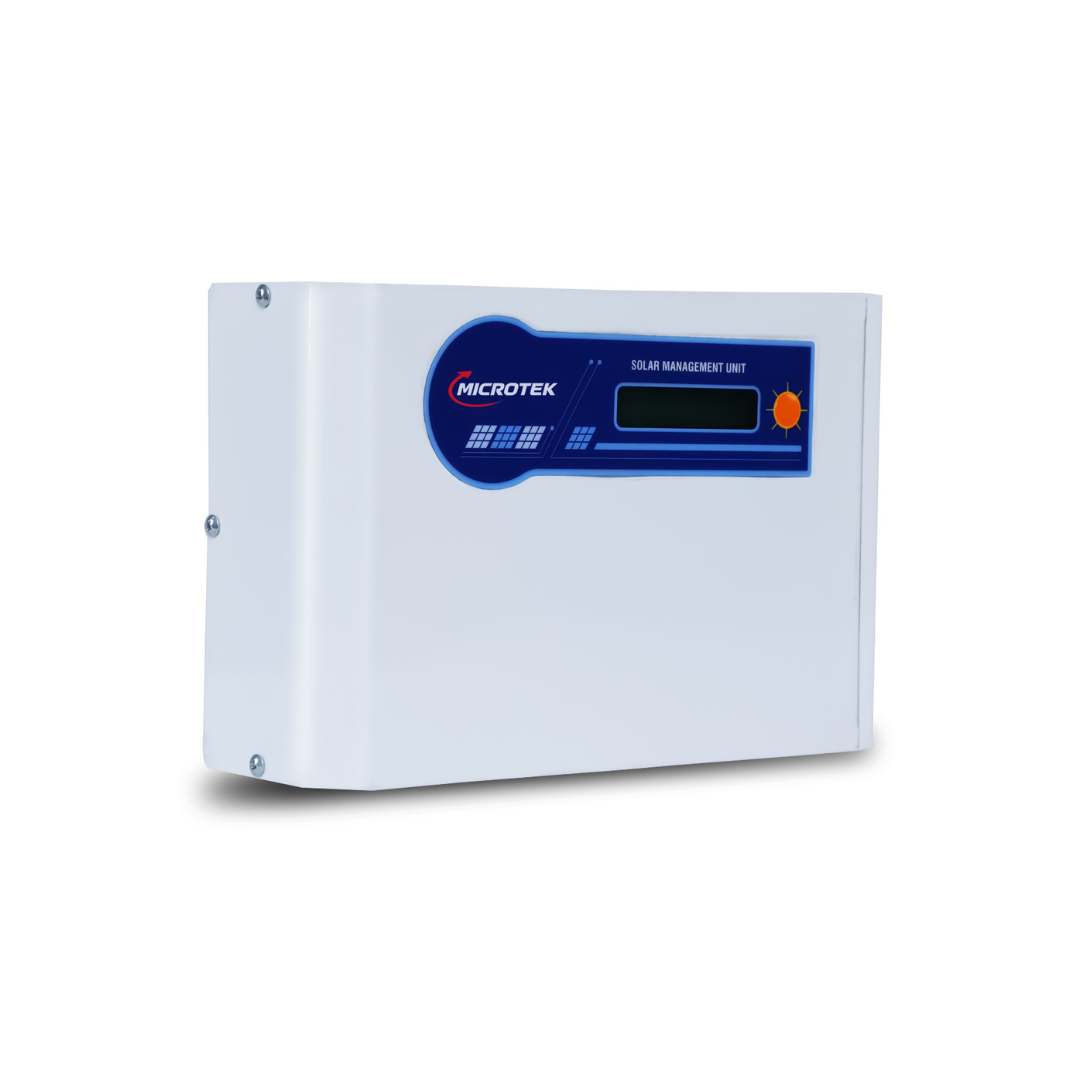

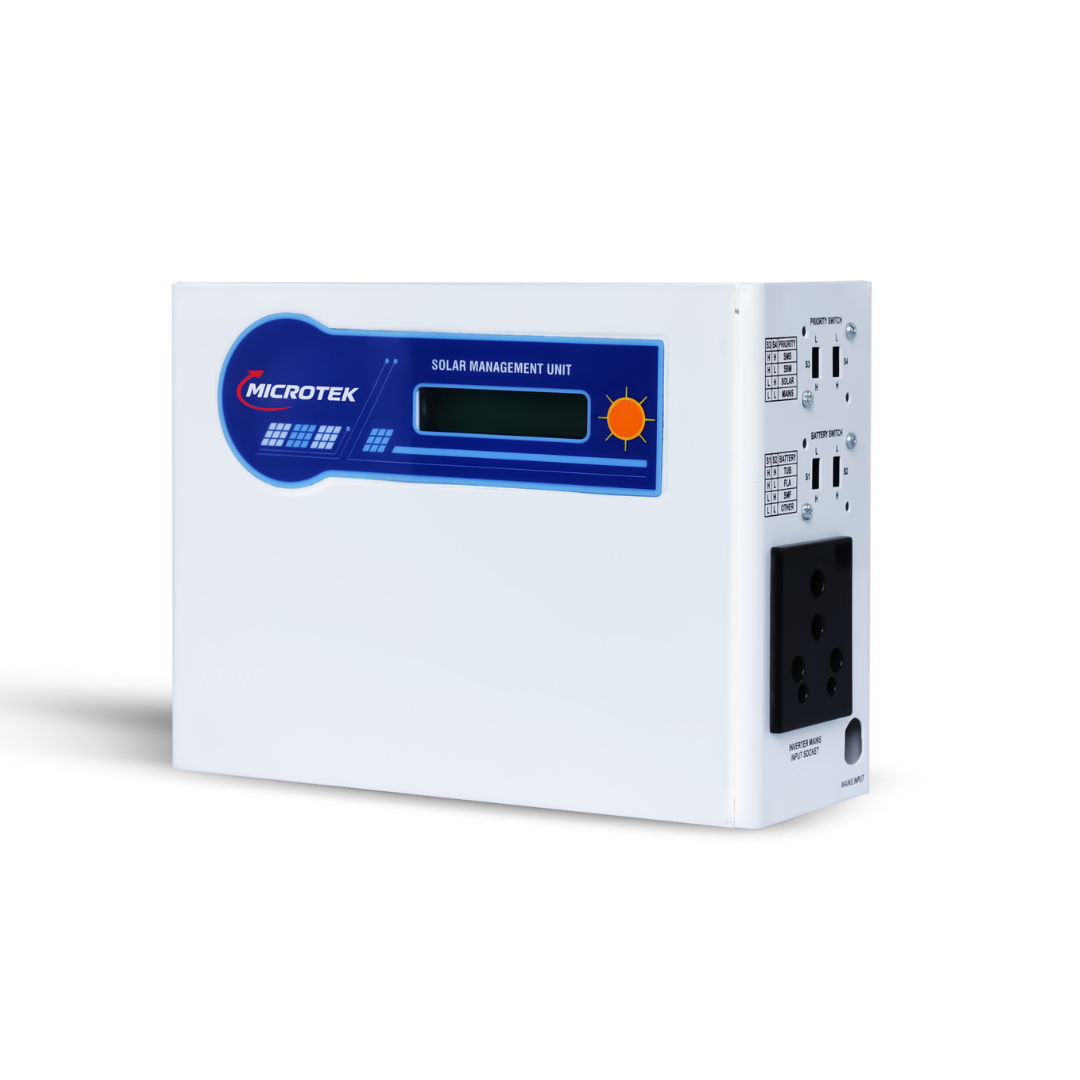

LCD SMU 1230
₹2,199₹4,850

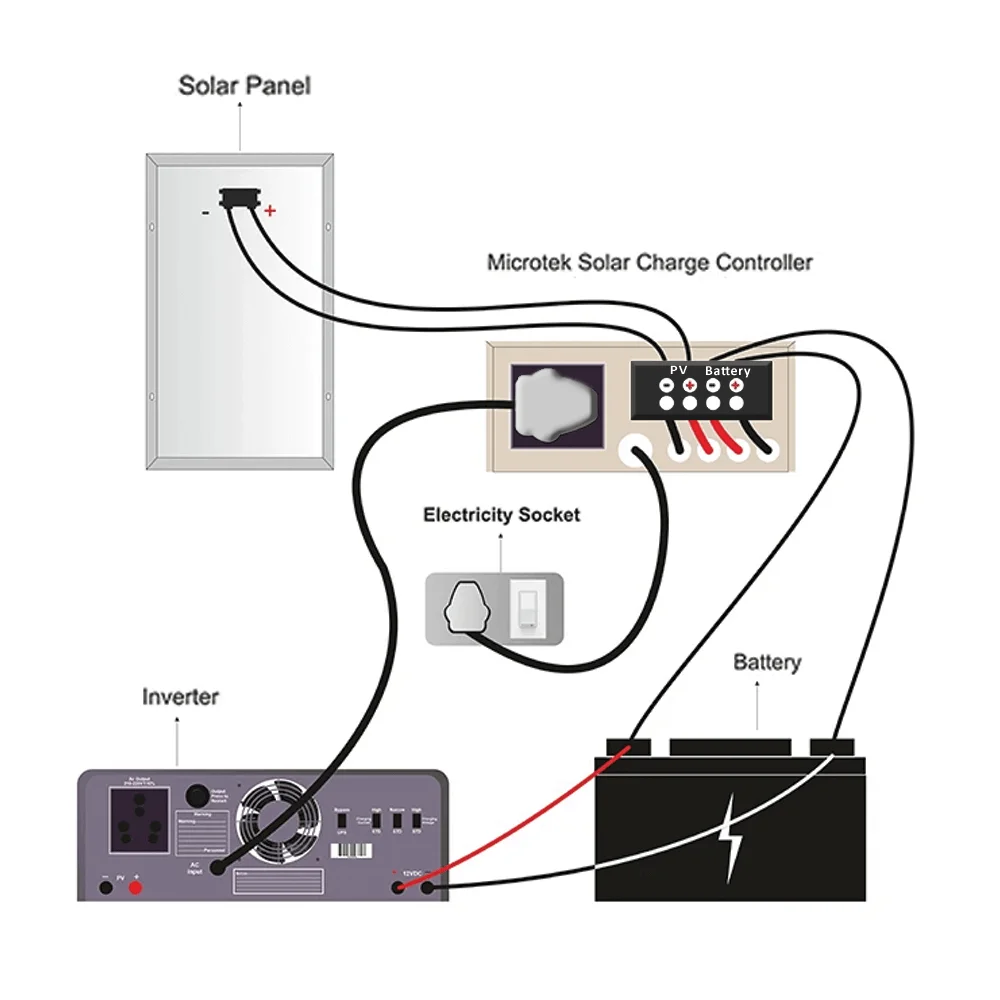

LCD SMU 1230 is a solar management unit. In short, it adds solar charging to an inverter you already own. Buy it from Nice Power System in Ashok Vihar with home installation and on-site service & AMC across Delhi NCR.
Product Details
Technical Specifications
| MODEL NO. | LCD SMU 1230 |
|---|---|
| MAX. SOLAR OPEN CIRCUITS VOLTAGE (voc) | 25V |
| MAX. SOLAR PANEL CAPACITY (in Parallel) | 150W x 4 |
| MAX. BATTERY CHARGING CURRENT | 35A |
| PEAK CHARGER EFFECIENCY | 96% |
| SYSTEM VOLTAGE (v) | 12 VDC |
| BATTERY FULL VOLTAGE (solar charging) | TUBURAL BATTERY: 14.6V + 0.3V FLAT PLATE BATTERY: 14.2V + 0.3V SMF BATTERY: 14.4V + 0.3V OTHER BATTERY: 13.8 + 0.3V |
| FLOAT CHARGING LEVAL | 13.8V + 0.3V |
| BATTERY VOLTAGE (Main Disconnect) | Same as Battery Full Voltage (Solar Charging) |
| PROTECTIONS | Reverse Battery, Reverce PV, Reverce Current From Battery to PV, Over PV Current, Battery High Voltage, Over Temprature, Over PV Voltage and Short Circuit Protection |
| AUTO BATTERY SELECTION FOR 12V/24V | IN BUILT |
| RESTART AFTER OVER CURRENT & SHORT CIRCUIT PROTECTION | After 3 Mins. |
| OPERATING TEMP. RANGE / REL. HUMIDITY | 0~40°C /0~95% Non-Condensing |
| AUDIABLE NOISE (Full Load) | <60dB |
| ENCLOSURE PROTECTION | IP20 |
| WIRE GUAGE FOR BATTERY & PV INPUT | 10.0 Sq. mm |
| WIRE GUAGE FOR INPUT MAINS & INVERTER | 1.5 Sq. mm |
| RECOMMENDED BATTERY CAPACITY | 1 x 150AH |
| LCD DISPLAY | LCD 16x2 |
