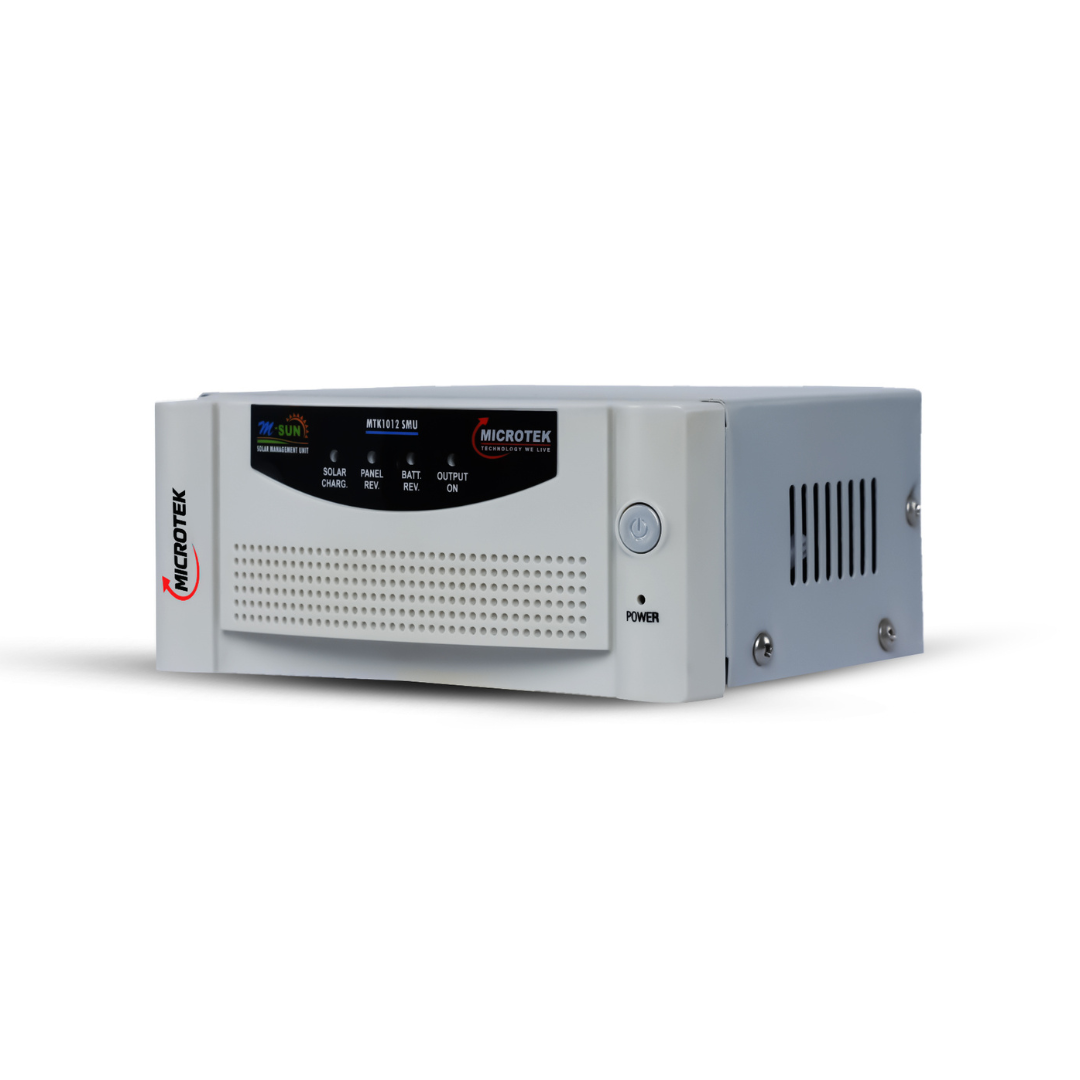

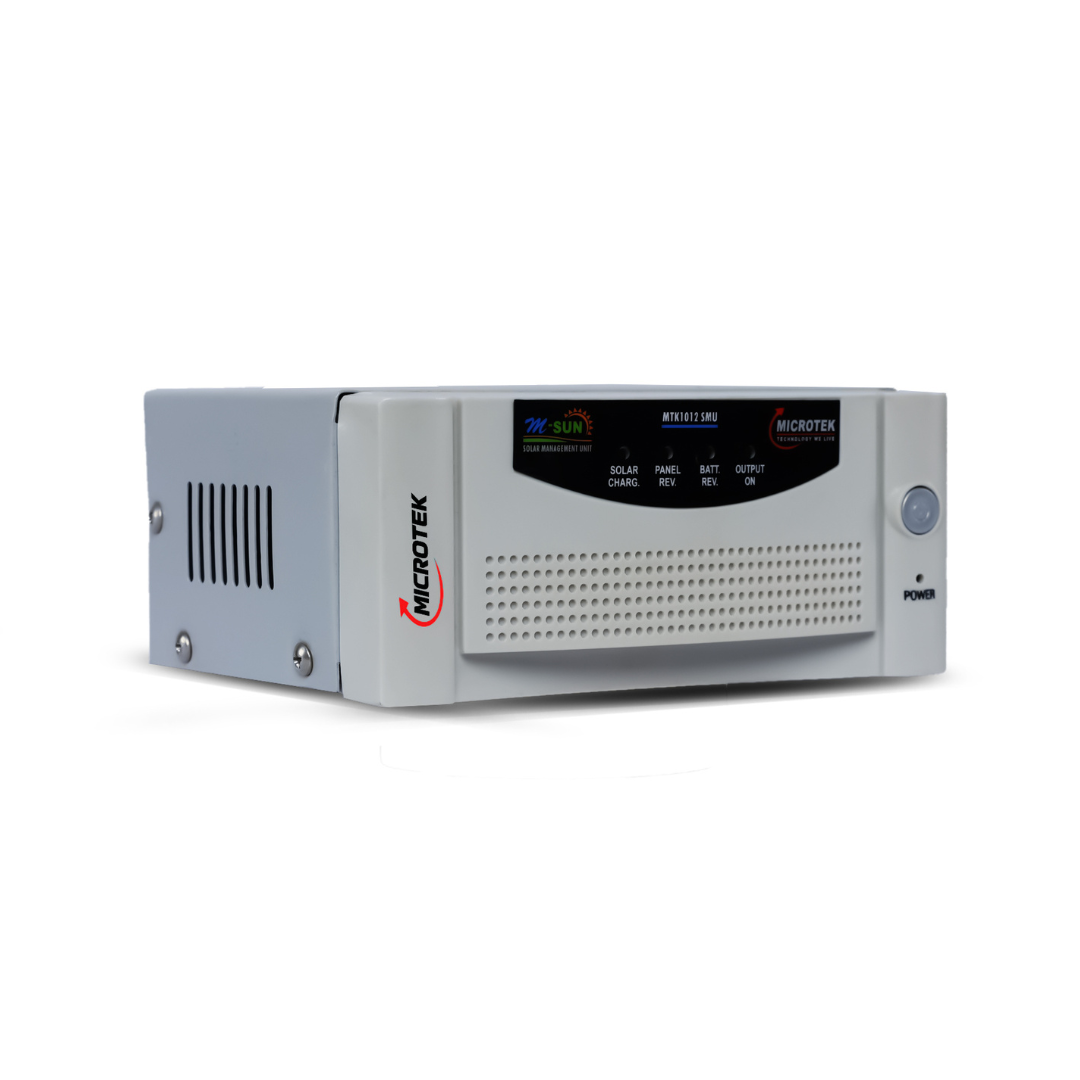

SMU 1012
₹999₹2,050

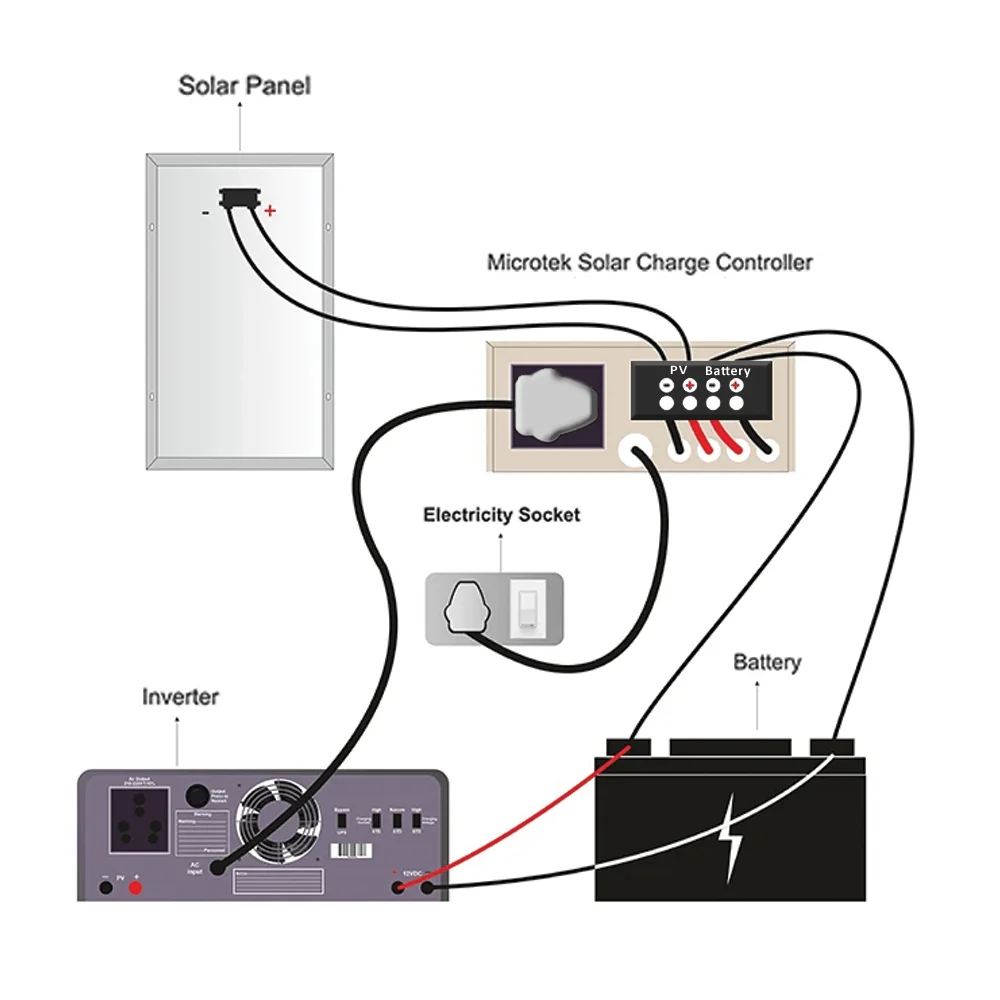

The SMU 1012 is a solar management unit. In short, it adds solar charging to an inverter you already own. Genuine product, sized and installed at your home, with old-unit exchange and after-sales service throughout Delhi NCR.
Product Details
Technical Specifications
| MODEL NO. | MTK1012 SMU |
|---|---|
| Max.Solar open circuit voltage(Voc) | 22V |
| Max.Solar Panel Capacity | 120Wp |
| Max.Battery Charging Current | 10A |
| Peak Charger Efficiency | 99% |
| System Voltage(V) | 12VDC |
| Battery Full Voltage (Solar Charging) | 14.5V+0.2V |
| Battery Voltage (Mains Disconnect) | 14.0V+0.2V |
| Battery Voltage (Mains Reconnect) | 11.5V+0.2V |
| Recommended Battery Capacity | 150AH & above |
| LED Indications | Solar Charging, Panel Reverse, Battery Reverse, Output ON |

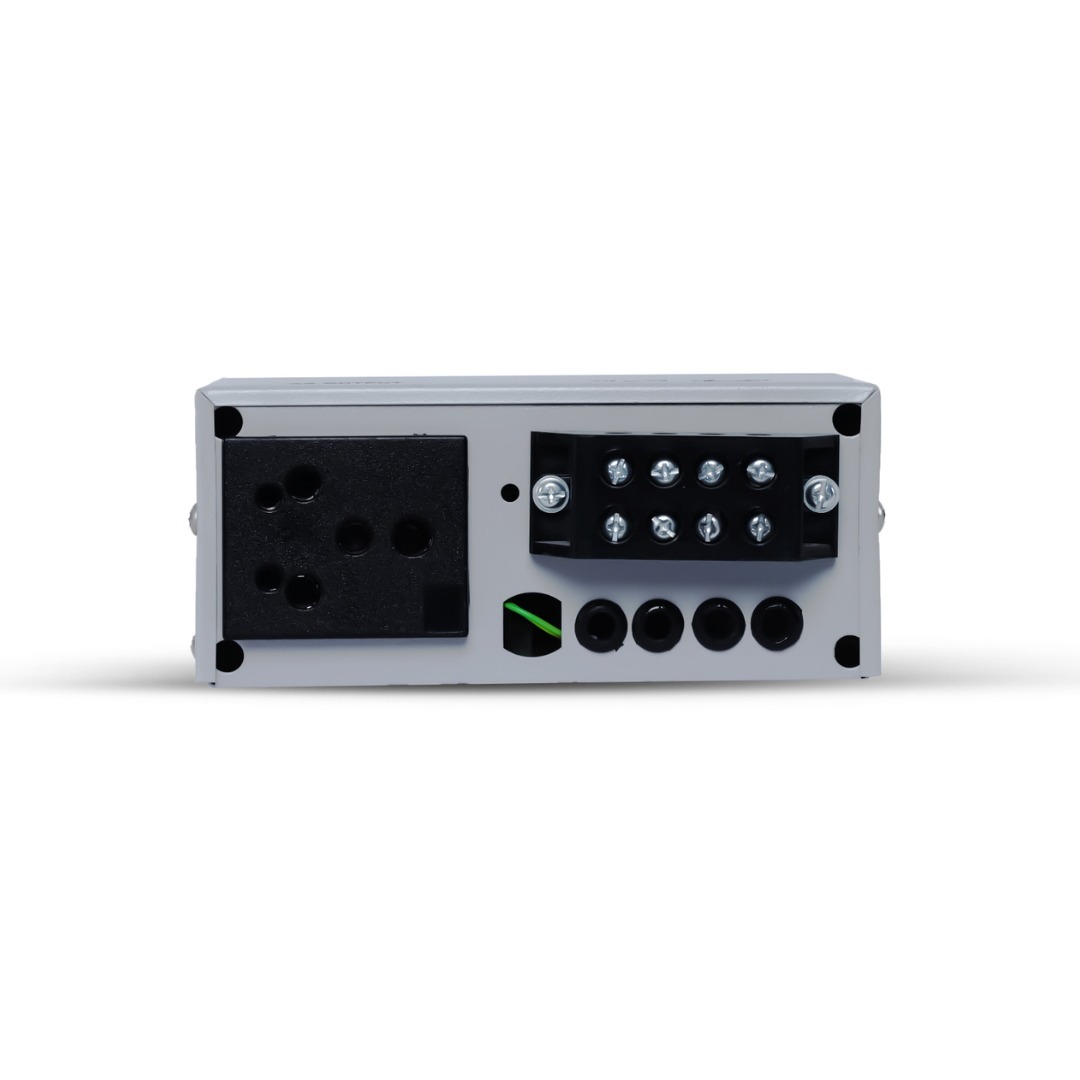

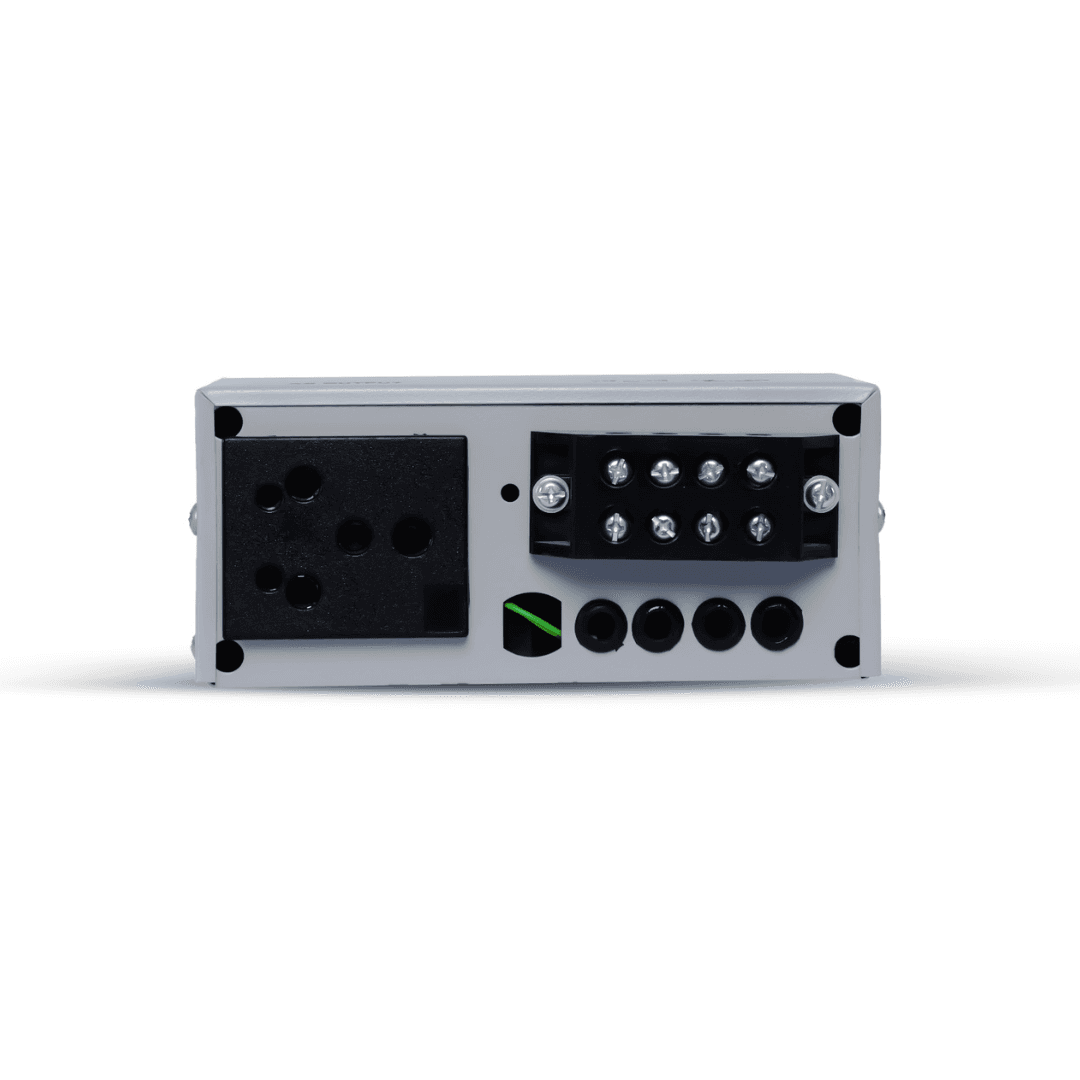

| Connection | TERMINAL BLOCK: For Solar Panel & Battery Connections MAINS IN: 1mm Power Cord With 16A Molded PlugMain Out:15A Power Outlet |
| Front Panel Switch | NORMAL: Default Position, Solar Charging & Mains Control BYPASS: Solar Charging & Main Bypass |
