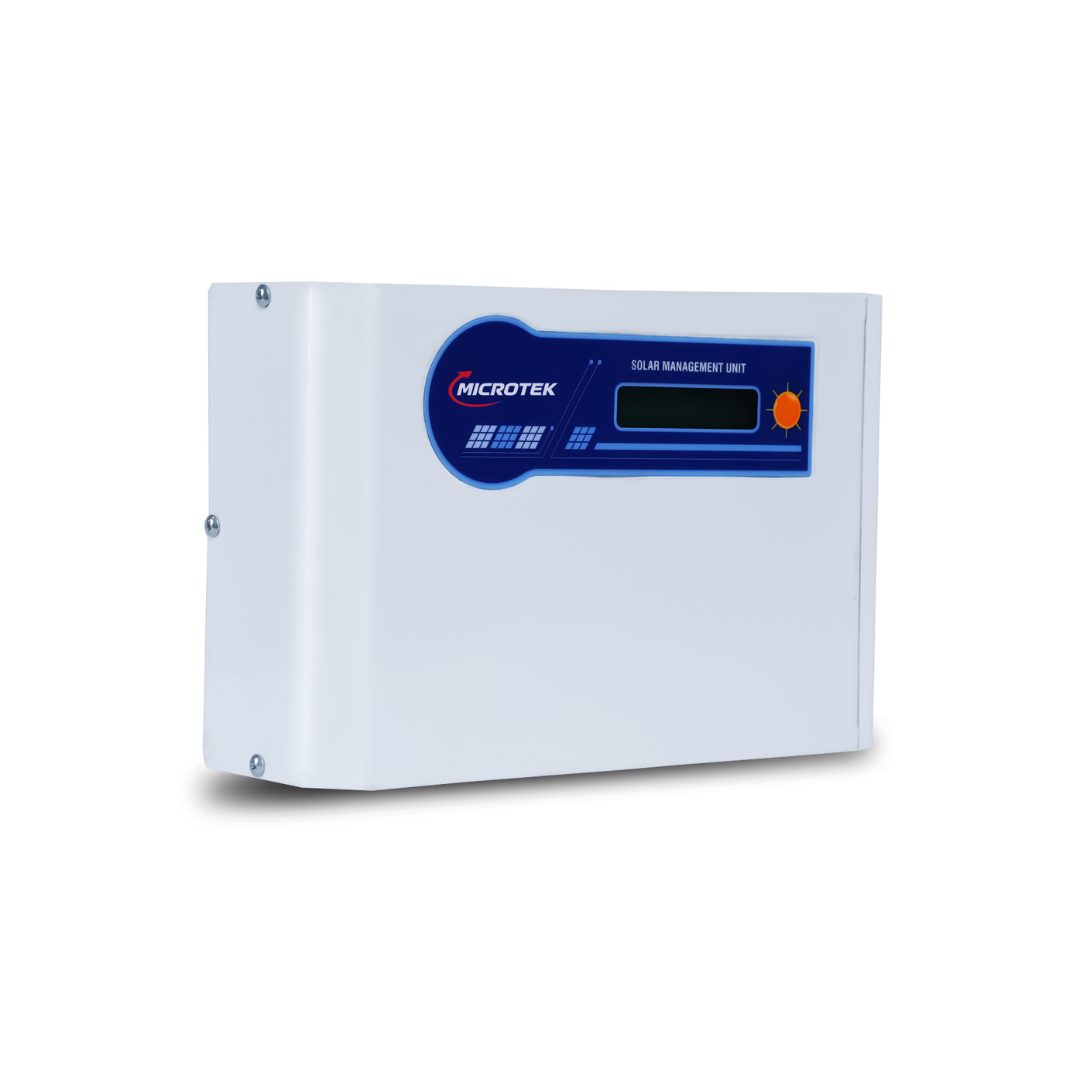

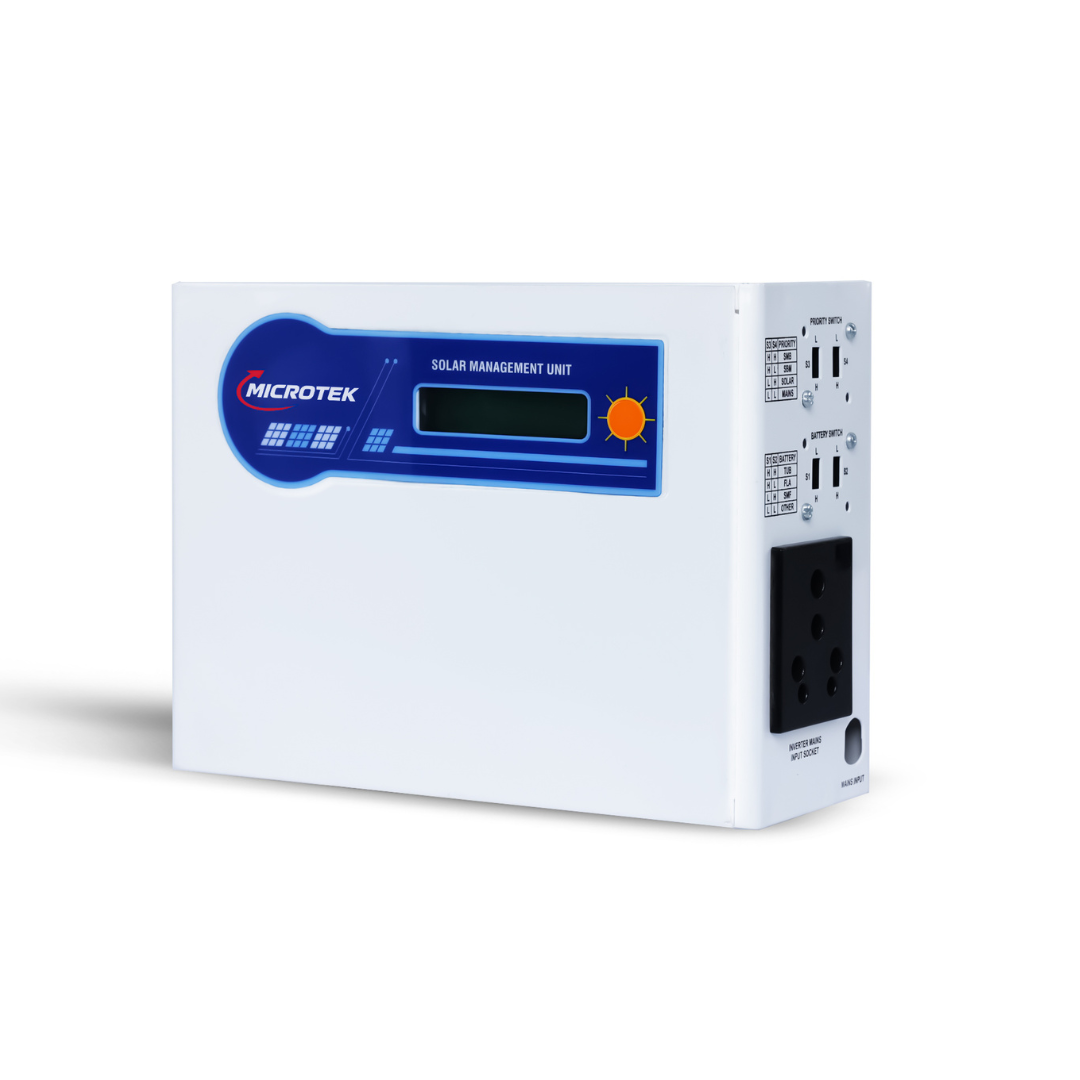

LCD SMU 2430
₹3,099₹5,800

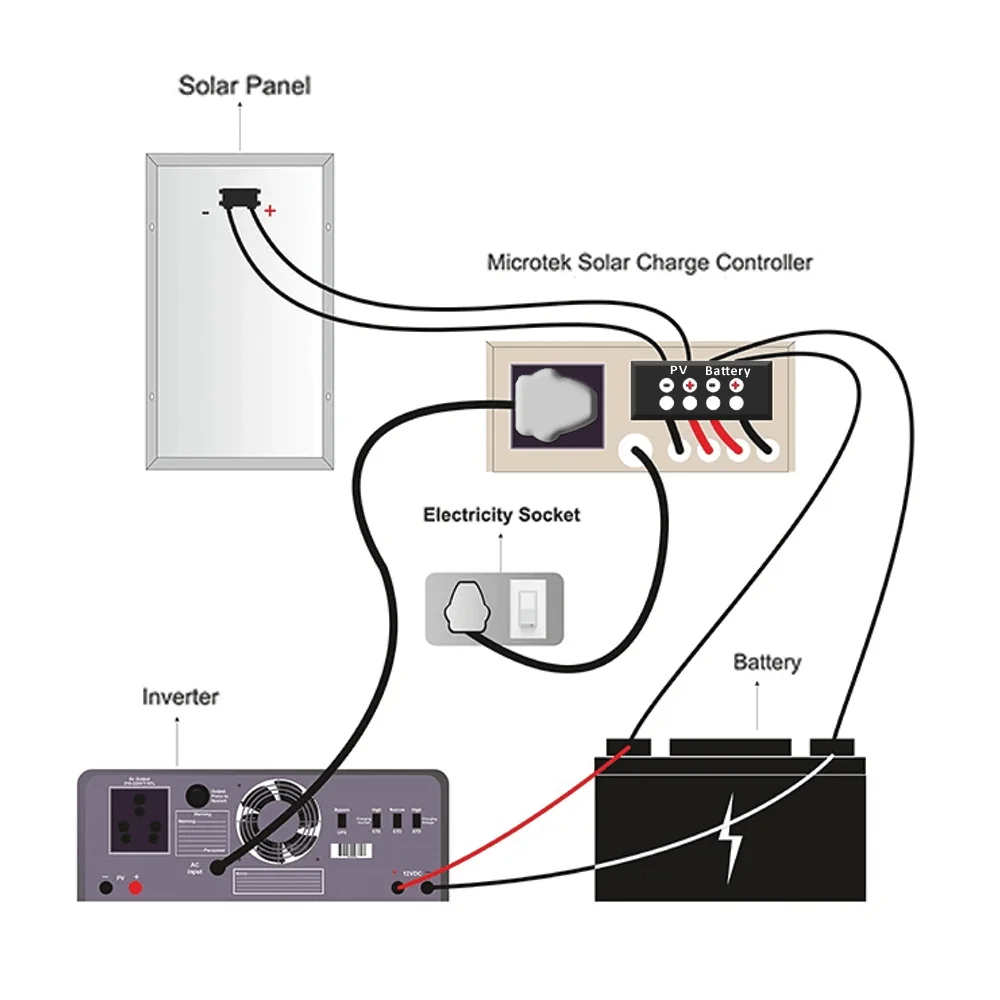

LCD SMU 2430 is a solar management unit. It adds solar charging to an inverter you already own. Buy it from Nice Power System in Ashok Vihar with home installation and on-site service & AMC across Delhi NCR.
Product Details
Technical Specifications
| MODEL NO. | LCD SMU 2430 |
|---|---|
| MAX. SOLAR OPEN CIRCUITS VOLTAGE (voc) | 50V |
| MAX. SOLAR PANEL CAPACITY (in Parallel) | 320W x 4 |
| MAX. BATTERY CHARGING CURRENT | 35A |
| PEAK CHARGER EFFECIENCY | 96% |
| SYSTEM VOLTAGE (v) | 24 VDC |
| BATTERY FULL VOLTAGE (solar charging) | TUBURAL BATTERY: 29.1V + 0.6V FLAT PLATE BATTERY: 28.3V + 0.6V SMF BATTERY: 28.7V + 0.6V OTHER BATTERY: 29.5V + 0.6V |
| FLOAT CHARGING LEVAL | 27.6V + 0.6V |
| BATTERY VOLTAGE (Main Disconnect) | Same as Battery Full Voltage (Solar Charging) |
| PROTECTIONS | Reverse Battery, Reverce PV, Reverce Current From Battery to PV, Over PV Current, Battery High Voltage, Over Temprature, Over PV Voltage and Short Circuit Protection |
| AUTO BATTERY SELECTION FOR 12V/24V | IN BUILT |
| RESTART AFTER OVER CURRENT & SHORT CIRCUIT PROTECTION | After 3 Mins. |
| OPERATING TEMP. RANGE / REL. HUMIDITY | 0~40°C /0~95% Non-Condensing |
| AUDIABLE NOISE (Full Load) | <60dB |
| ENCLOSURE PROTECTION | IP20 |

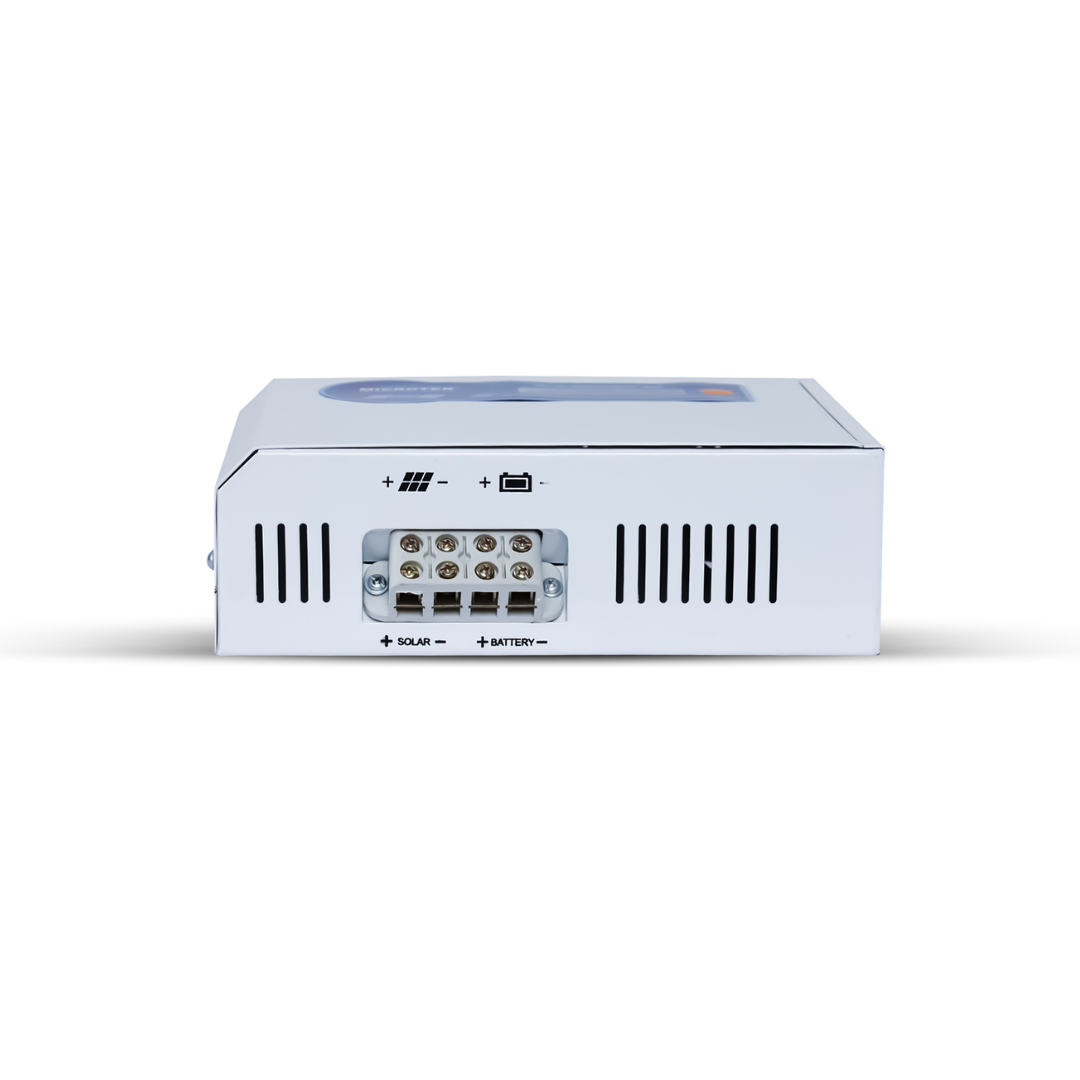

| WIRE GUAGE FOR BATTERY & PV INPUT | 10.0 Sq. mm |
| WIRE GUAGE FOR INPUT MAINS & INVERTER | 1.5 Sq. mm |
| RECOMMENDED BATTERY CAPACITY | 2 x 150AH |
| LCD DISPLAY | LCD 16x2 |
