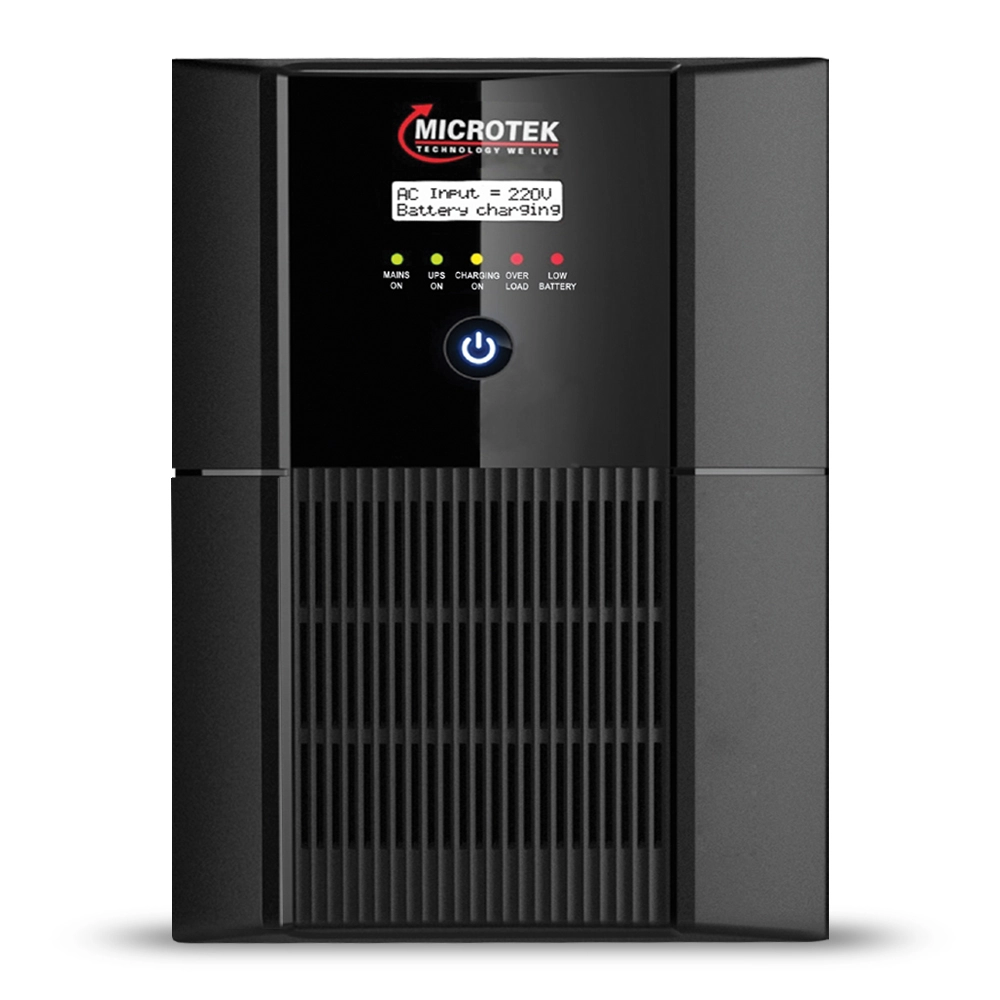

JUMBO HOME UPS - JM SW 4500+/36V
₹24,399₹40,000
The JUMBO HOME UPS - JM SW 4500+/36V is a high-capacity home UPS. It powers larger homes and shops through long outages. Key features include DSP Based Smart Control Design. We supply it as genuine stock with home installation, old-battery exchange and on-site service across Delhi NCR.
Product Details
Technical Specifications
| MODEL UPS | JM SW 4500+/36V |
|---|---|
| Capacity / Rating | 4KVA / 3200W |
| Standard Input Voltage | 100V~280V |
| Narrow Input Voltage | 180V~260V |
| Output Voltage on Main Mode | Same as Input |
| Output Voltage on UPS mode | 220V+10% |
| Output Frequency on UPS Mode | 50Hz+0.5Hz |
| Switching form mains to UPS and UPS to mains | Automatic |
| Output wavefrom on mains mode | Same as input |
| Output wavefrom on backup mode | Pure Sinewave |
| Battery charging current | Max Charge Current 20A+3A |
| Battery Charger | Boost Based PWM Control Multi-Stage IBM technology |
| Efficinecy | >80% |
| Input Brown Out Voltage | 100V+10V |
| UPS Overload | 108% of the Rated Capacity |
| Technology | DSP Based Smart Control Design |
| Auto Reset Feature | Yes |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dBRelative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Mains to Bypass | Rotary/Rocker Bypass Switch |
| Display | LCD/LED Display Indicator |
