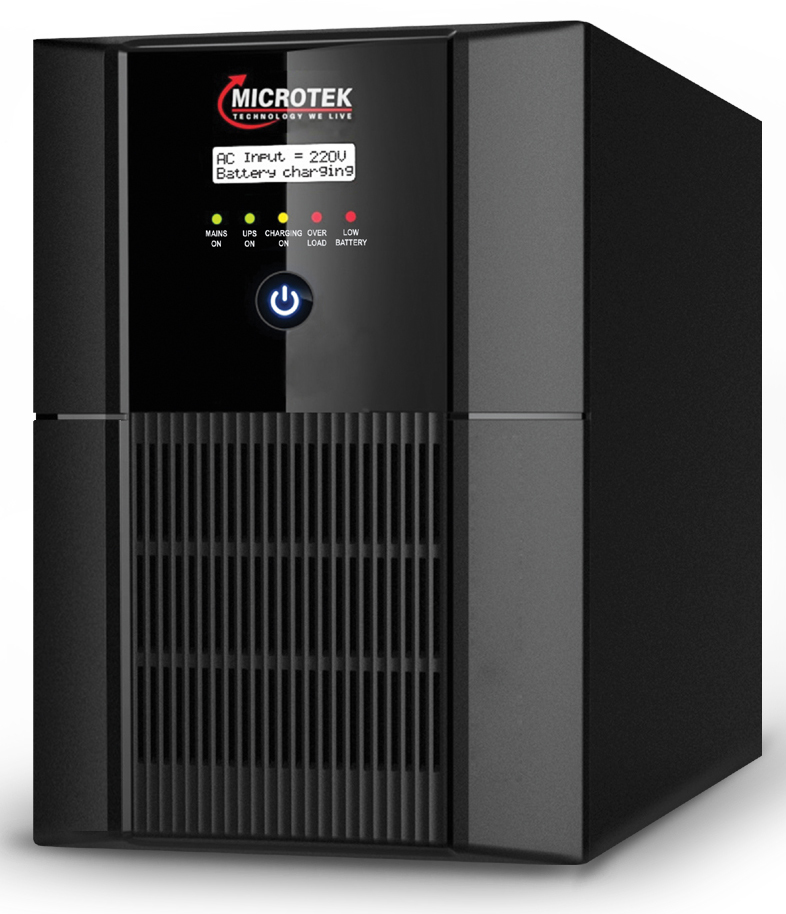

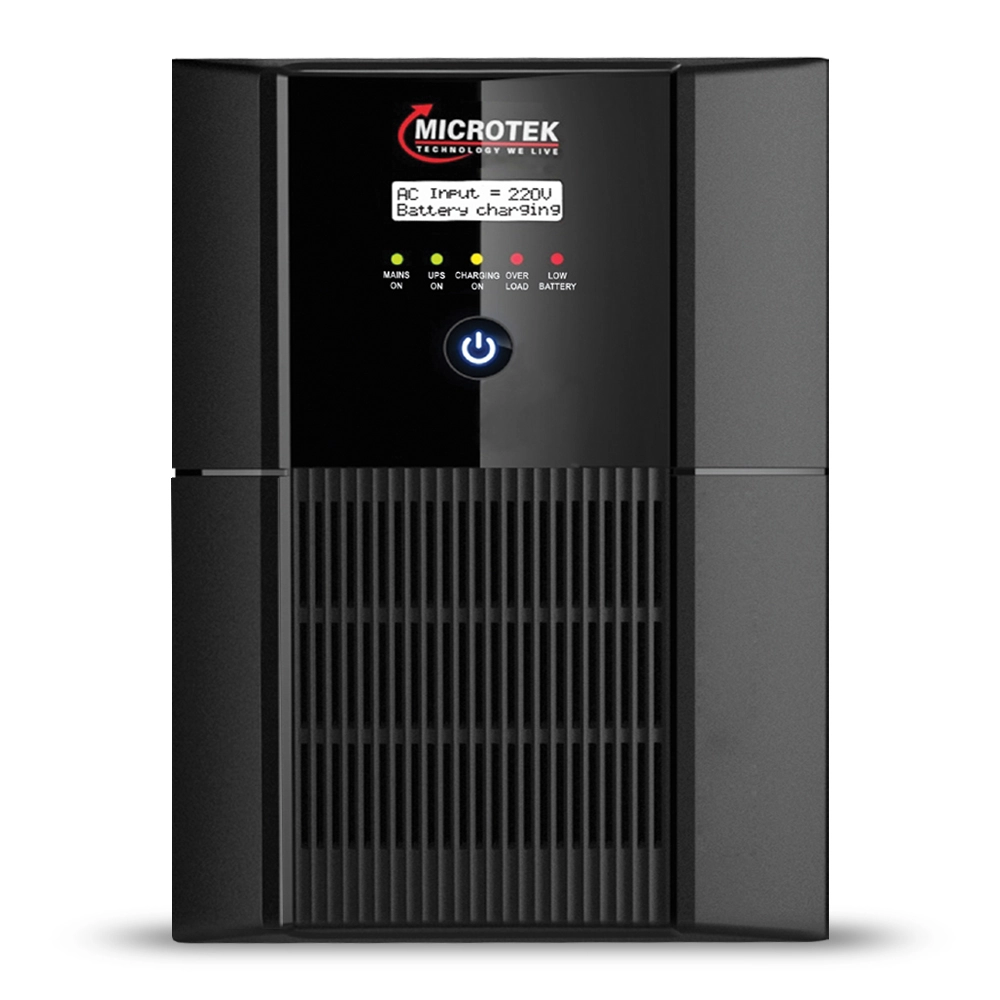

JUMBO HOME UPS - JM SW 8000+/72V
₹37,699₹63,000
Designed for dependable performance, the JUMBO HOME UPS - JM SW 8000+/72V is a high-capacity home UPS. In short, it powers larger homes and shops through long outages. It offers DSP Based Smart Control Design. We supply it as genuine stock with home installation, old-battery exchange and on-site service across Delhi NCR.
Product Details
Technical Specifications
| MODEL UPS | JM SW 8000+/72V |
|---|---|
| Capacity / Rating | 7KVA / 5600W |
| Standard Input Voltage | 100V~280V |
| Narrow Input Voltage | 180V~260V |
| Output Voltage on Main Mode | Same as Input |
| Output Voltage on UPS mode | 220V+10% |
| Output Frequency on UPS Mode | 50Hz+0.5Hz |
| Switching form mains to UPS and UPS to mains | Automatic |
| Output wavefrom on mains mode | Same as input |
| Output wavefrom on backup mode | Pure Sinewave |
| Battery charging current | Max Charge Current 20A+3A |
| Battery Charger | Boost Based PWM Control Multi-Stage IBM technology |
| Efficinecy | >80% |
| Input Brown Out Voltage | 100V+10V |
| UPS Overload | 108% of the Rated Capacity |
| Technology | DSP Based Smart Control Design |
| Auto Reset Feature | Yes |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dBRelative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Mains to Bypass | Rotary/Rocker Bypass Switch |
| Display | LCD/LED Display Indicator |
