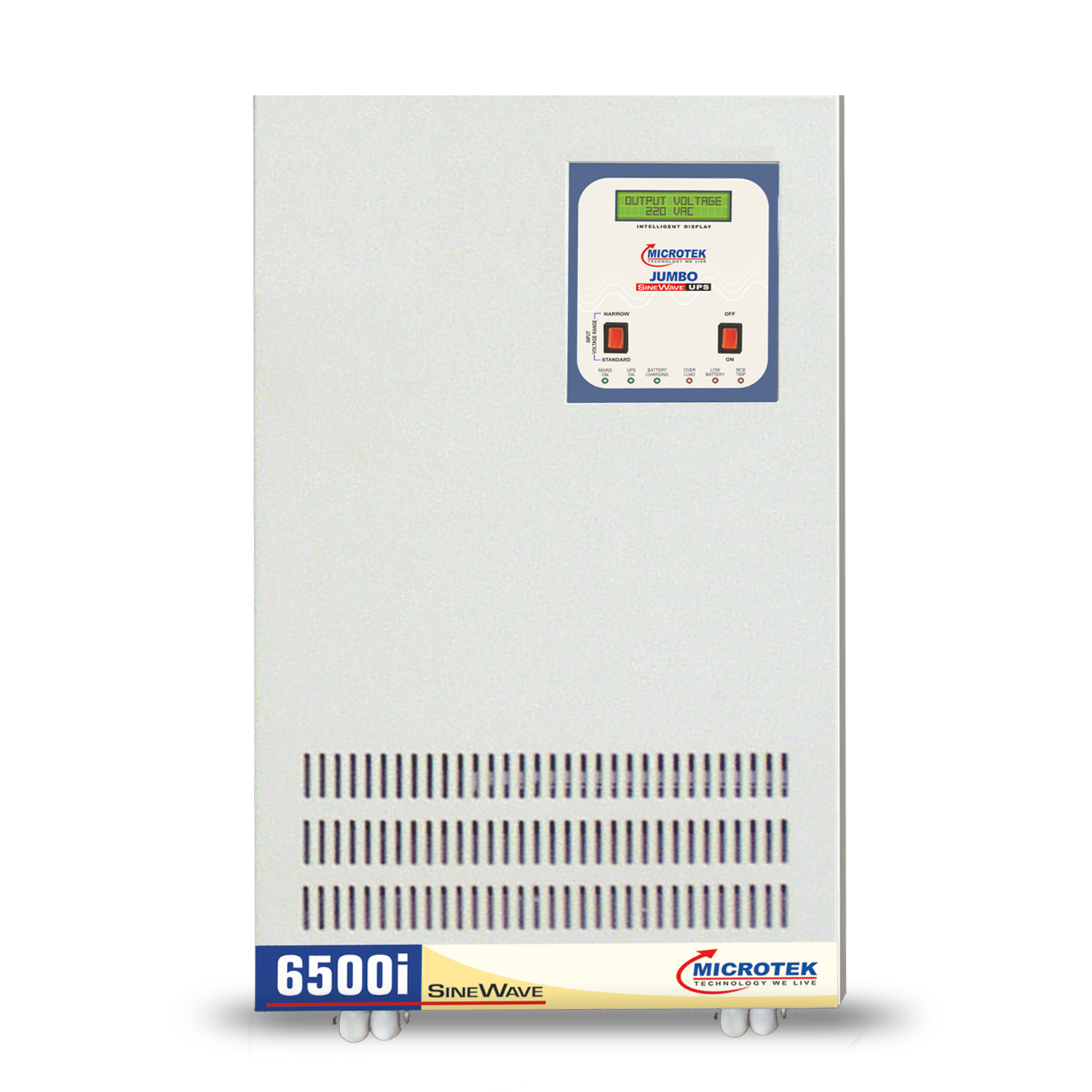

Hi-GRADE JUMBO UPS JM SW 6500i/96V
₹47,099₹59,990
Designed for dependable performance, the Hi-GRADE JUMBO UPS JM SW 6500i/96V is a 5.5 KVA high-capacity home UPS. Day to day, it powers larger homes and shops through long outages. You get a 2-year warranty. We supply it as genuine stock with home installation, old-battery exchange and on-site service across Delhi NCR.
Product Details
Technical Specifications
| Rated Capacity | 5.5 KVA / 96 V |
|---|---|
| Output Power | 4400 Watts |
| Battery | 8 Battery System (96 VDC) |
| Waveform | Pure Sinewave |
| Warranty | 2 Years |
| INPUT VOLTAGE (Standard range) | 100V ~ 280V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 265V |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 220V+ 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | Pure Sinewave |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15 msec |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 105%~125%(4 Times Auto Reset) / 300% |
| EFFICIENCY (BATTERY MODE) | >80% |
| TOTAL HARMONIC DISTORTION (Resistive Load) | Less than 3% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 84 ~ 114 V ± 1 Volt |
| MAXIMUM CHARGING CURRENT | 16 Amps(Settable ± 3 Amps) |
| SEPARATE OUTPUT WITH TDR | 1 minute TDR |
| OPERATING TEMPRATURE | 0 to 45 Degree Celsius |
