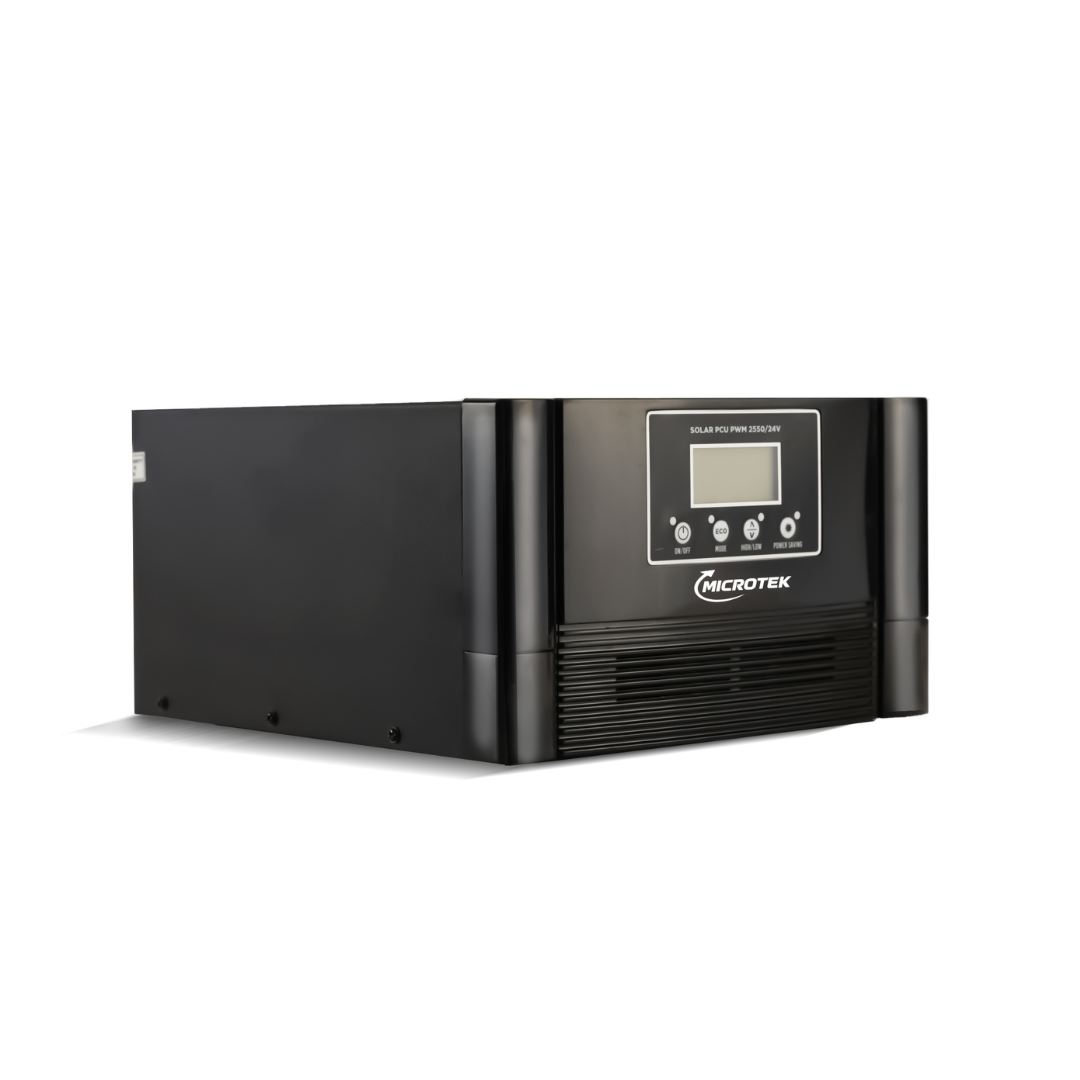

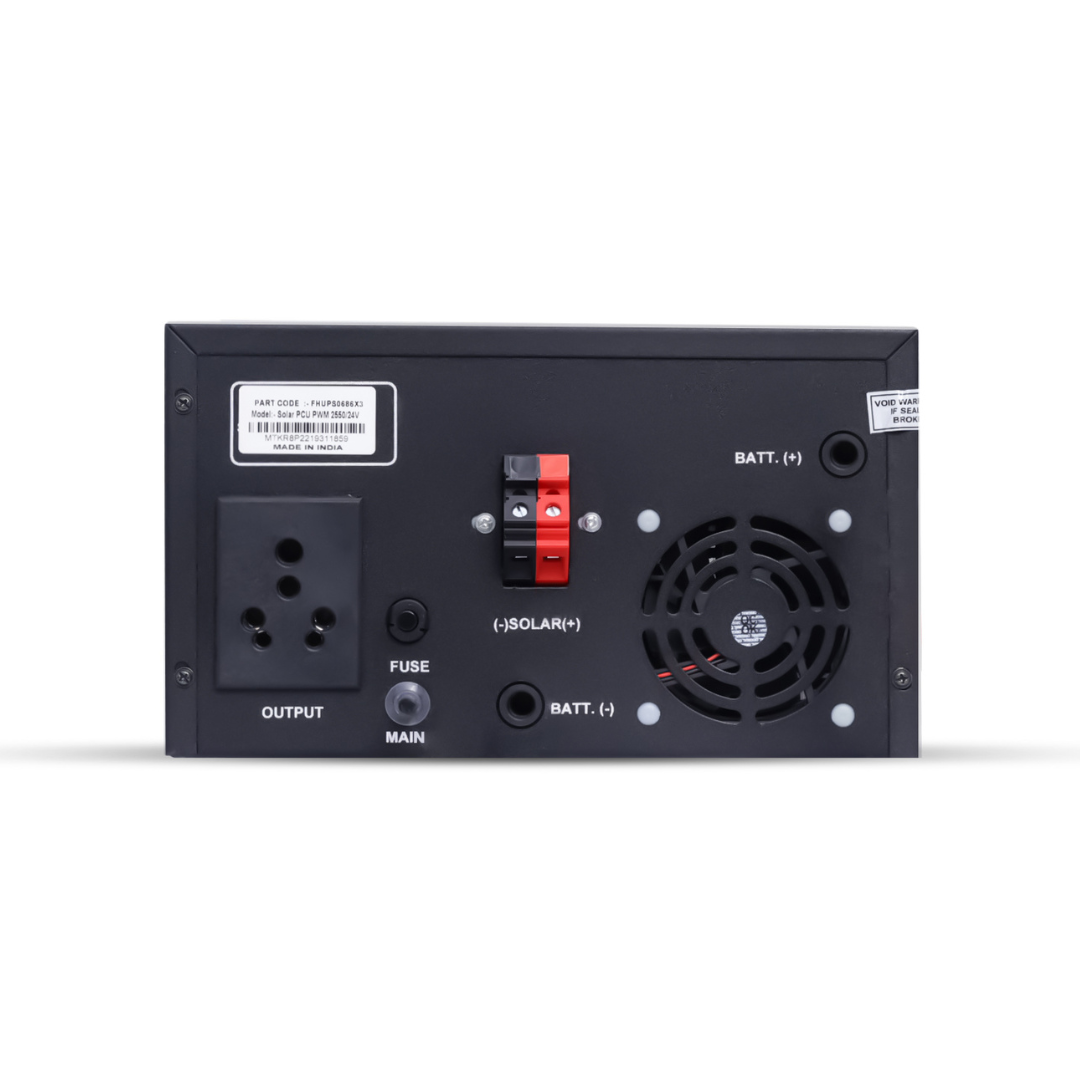

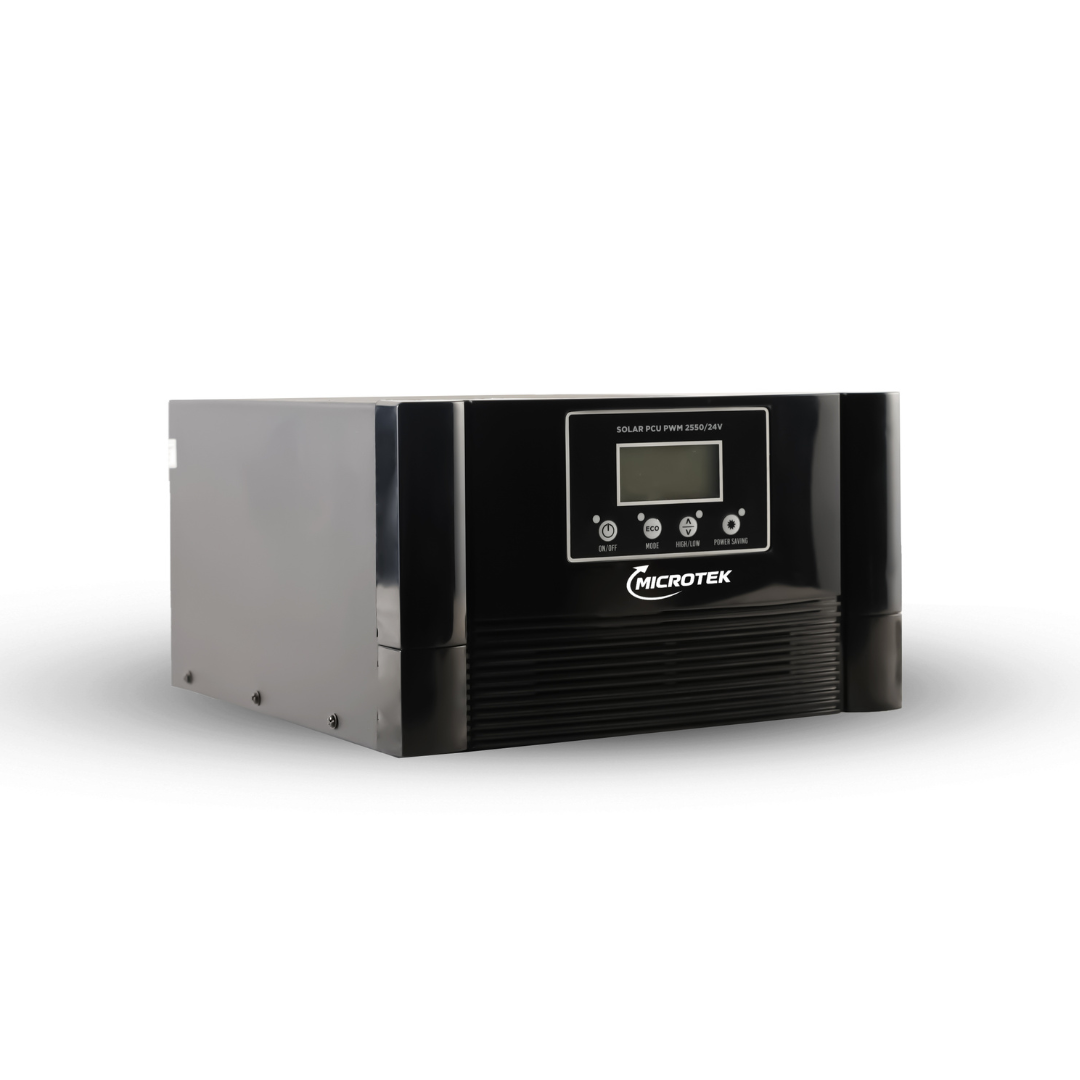

HI-END PWM PCU 2550 24V
₹13,499₹20,990
The HI-END PWM PCU 2550 24V is a 2.2KVA solar PCU. Day to day, it runs your home on solar first, then battery and grid, with backup during cuts. Backed by Nice Power System's installation, exchange and on-site service across Delhi NCR — serving the city since 1998.
Product Details
Technical Specifications
| MODEL | PCU PWM 2550 / 24V |
|---|---|
| PV Controller Topology | PWM |
| Rated Capacity | 2.2KVA |
| Battery Nominal Voltage | 24V |
| Grid Input Voltage Range | NORMAL MODE: 90V+5V~290V+5V |
| Maximum Solar Input Power(W) | 1800W |
| Maximum Solar Input Voltage (VOC) | 49Voc |
| Solar Charger Controller | 50A |
| No. Of Output Phase | 1Phase |
| Inverter Output Voltage at Nominal DC | 230V+3% |
| Output Frequency | 50Hz+0.1HZ |
| THD | <3%(at Linear Load) |
| Output Waveform on UPS Mode | Pure Sinewave |
| Battery Charging Current: Mains | Constant Charging Approx. 10% of the Rated Battery Current in AH |
| UPS Transfer Time | NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec |
| UPS Overload / UPS Short Circuits Protections | Available |
| Reverse Panel Protection | Available |
| Thermal Protection | Both in Grid Charging & Backup Mode |
| DC Input Volt. High Cut Protection/Recover | Available |
| Most Advanced Real Time Clock Technology | RTC ensures Optimum Saving Of Solar Energy |
| Operating Temperature | 0~45°C |
| Weight (Kgs.) | Net: 16.960 / Gross: 18.300 |
| Dimension (LxWxH) in MM | 405x370x260 |
