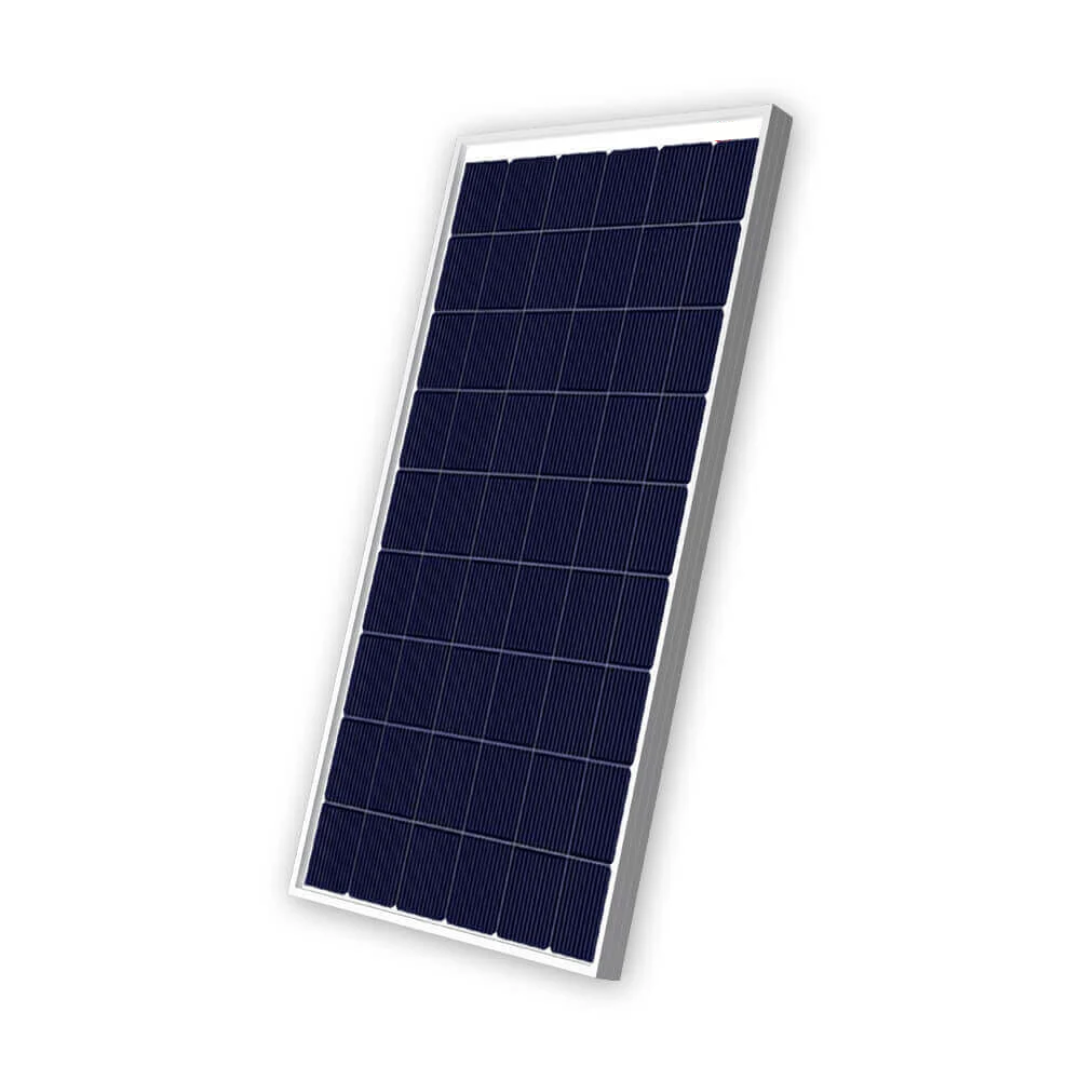

SOLAR PV MODULE 50W 12V
₹1,599₹4,850
The SOLAR PV MODULE 50W 12V is a solar panel. In short, it generates clean, free power for your rooftop solar system. Genuine product, sized and installed at your home, with old-unit exchange and after-sales service throughout Delhi NCR.
Product Details
Technical Specifications
| Nominal Maximum Power (Pm) | 50Watts/12V |
|---|---|
| Open Circuit Voltage (Voc) | 21.90V |
| Short Circuit Current (Isc) | 3.02A |
| Voltage at Maximum Power (Vmp) | 17.96V |
| Current at Maximum Power (Imp) | 2.87A |
| Maximum System Voltage | 1000V |
| Length x Width x Thickness (LxWxT) - mm | 545x665x35 |
| Mounting Holes Pitch (Y) – mm | 200 |
| Mounting Holes Pitch (X) – mm | 630 |
| Solar Cells per Module (Units) / Arrangement | 36 / (9 x 4) |
| Solar Cell Type | Multi Crystalline Silicon |
| Front Cover (Material / Thickness) | Tempered & Low Iron Glass / 3.2mm |
| Encapsulate | Ethylene Vinyl Acetate |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP67/IP68 Enclosure with Bypass Diodes |
