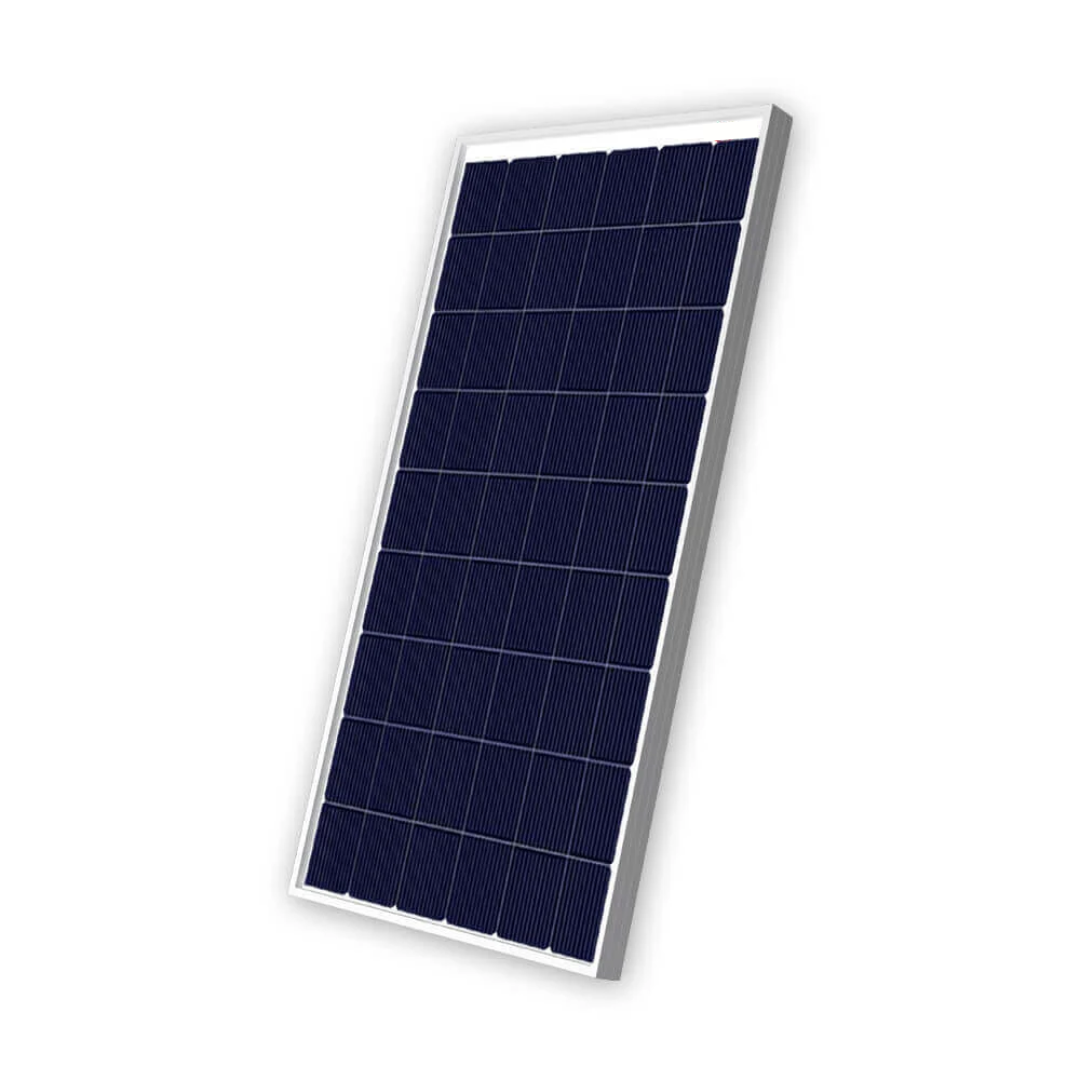

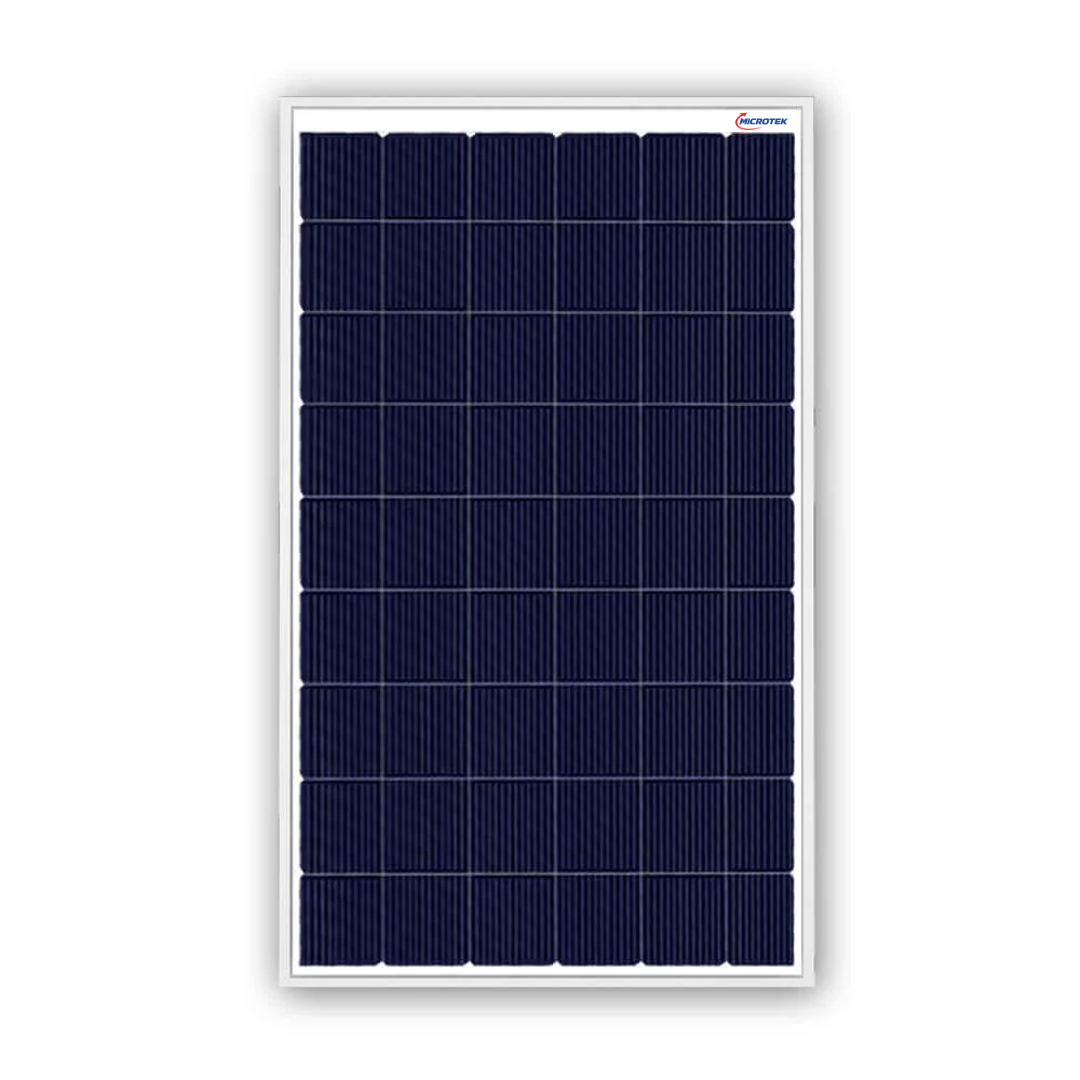

SOLAR PV MODULE 165W 12V
₹13,491₹14,990
Shop the Solar PV Module 165W 12V for efficient solar power generation. Ideal for various solar applications. Buy now at Microtek!
Product Details
Technical Specifications
| Nominal Maximum Power (Pm) | 165Watts/12V |
|---|---|
| Open Circuit Voltage (Voc) | 22.50V |
| Short Circuit Current (Isc) | 9.22A |
| Voltage at Maximum Power (Vmp) | 18.95V |
| Current at Maximum Power (Imp) | 8.72A |
| Maximum System Voltage | 1000V |
| Length x Width x Thickness (LxWxT) - mm | 1495x670x35 |
| Mounting Holes Pitch (Y) – mm | 635 |
| Mounting Holes Pitch (X) – mm | 980 |
| Solar Cells per Module (Units) / Arrangement | 36 / (9 x 4) |
| Solar Cell Type | Multi Crystalline Silicon |
| Front Cover (Material / Thickness) | Tempered & Low Iron Glass / 3.2mm |
| Encapsulate | Ethylene Vinyl Acetate |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP-65, 3-Rail, 2 Diodes, 1 Mtr 4 Sq mm Wire With MC4 Connector |
