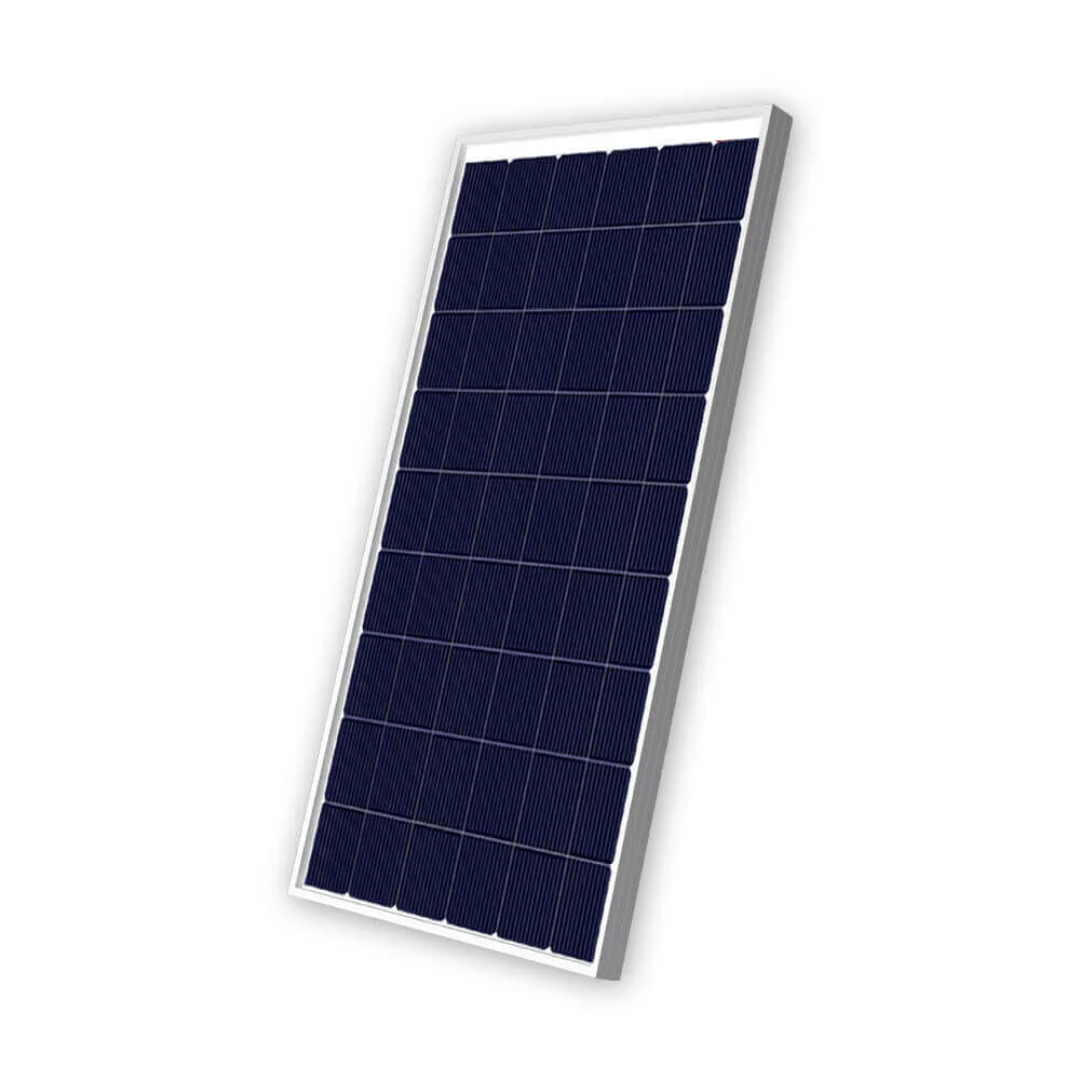

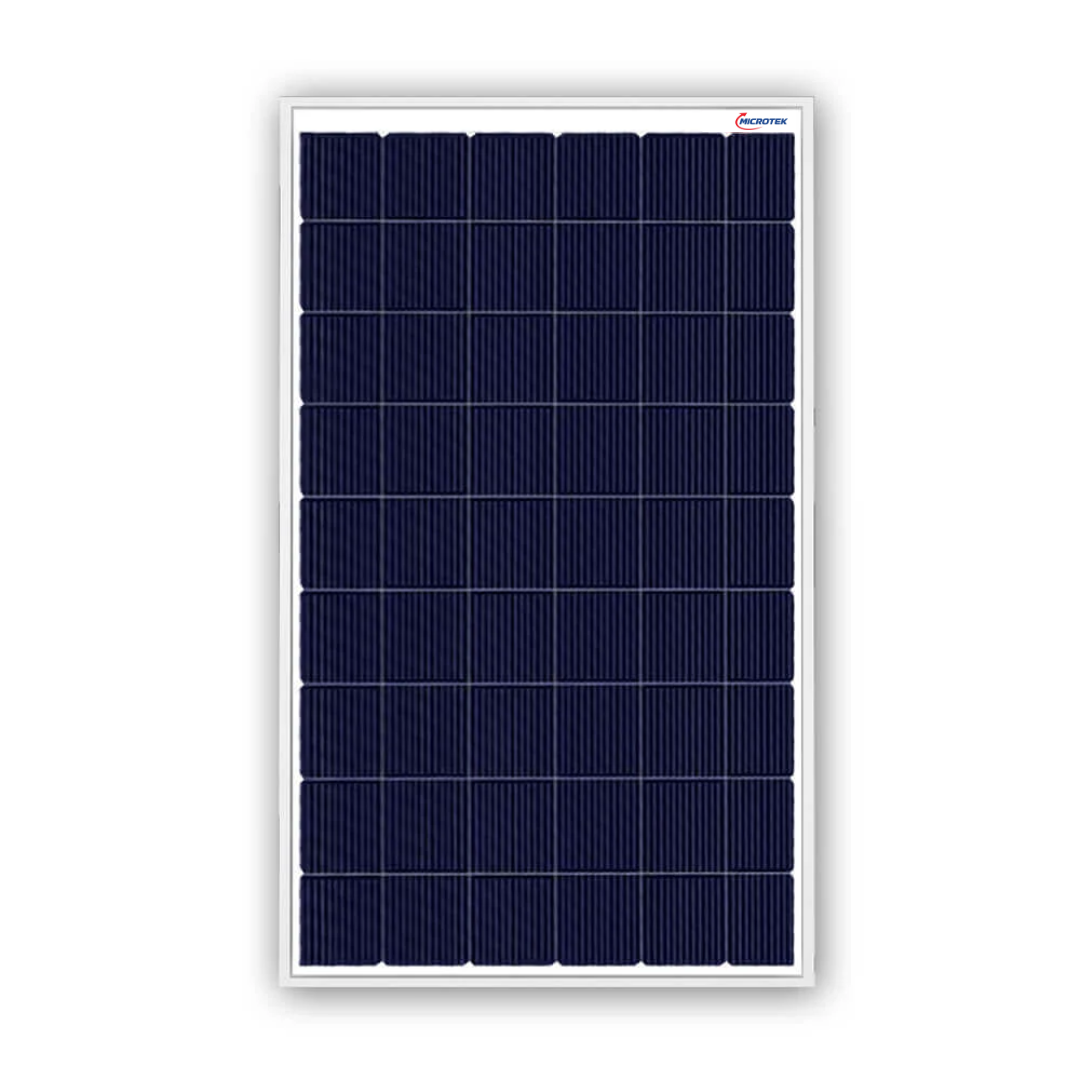

100W 12V Solar Panel
₹2,799₹8,300
The 100W 12V Solar Panel is a solar panel. Day to day, it generates clean, free power for your rooftop solar system. Buy it from Nice Power System in Ashok Vihar with home installation and on-site service & AMC across Delhi NCR.
Product Details
Technical Specifications
| Nominal Maximum Power (Pm) | 100Watts/12V |
|---|---|
| Open Circuit Voltage (Voc) | 21.90V |
| Short Circuit Current (Isc) | 6.12A |
| Voltage at Maximum Power (Vmp) | 17.96V |
| Current at Maximum Power (Imp) | 5.57A |
| Maximum System Voltage | 1000V |
| Length x Width x Thickness (LxWxT) - mm | 1010x665x35 |
| Mounting Holes Pitch (Y) – mm | 500 |
| Mounting Holes Pitch (X) – mm | 630 |
| Solar Cells per Module (Units) / Arrangement | 36 / (9 x 4) |
| Solar Cell Type | Multi Crystalline Silicon |
| Front Cover (Material / Thickness) | Tempered & Low Iron Glass / 3.2mm |
| Encapsulate | Ethylene Vinyl Acetate |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP67/IP68 Enclosure with Bypass Diodes |
