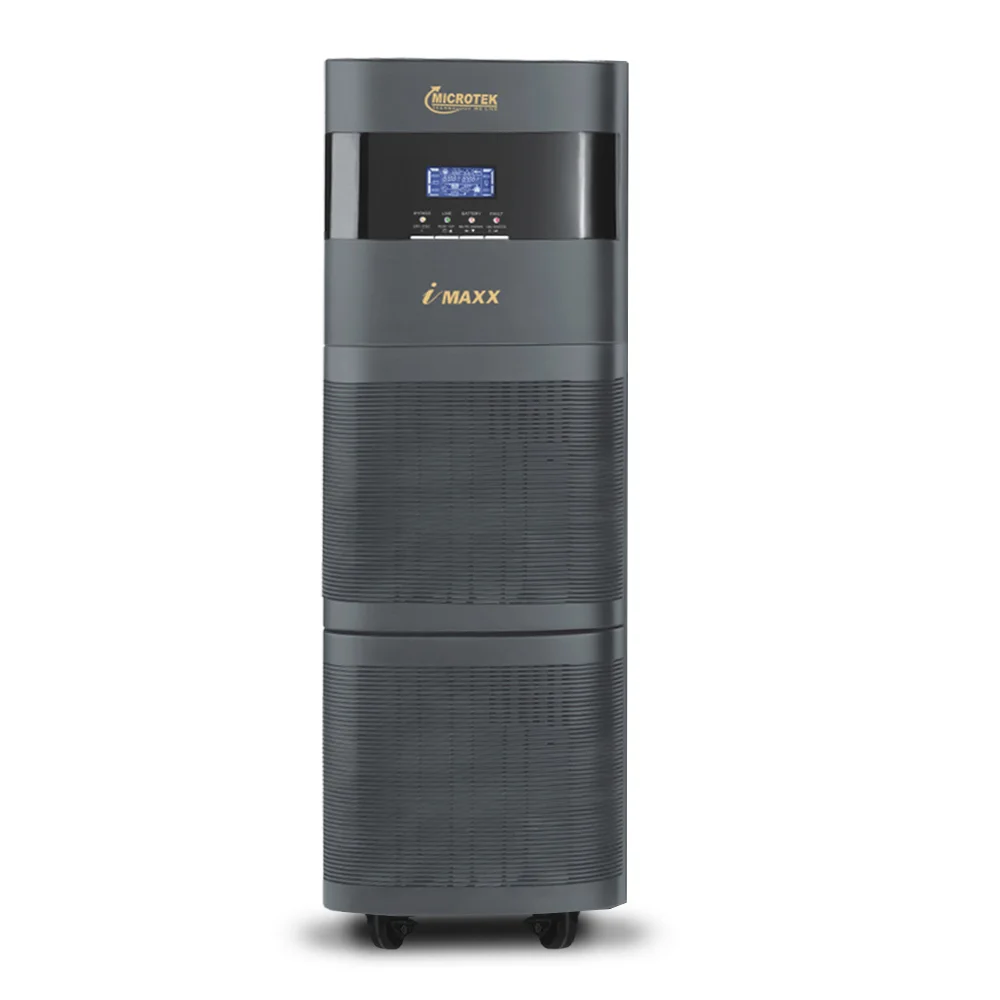

ON LINE UPS 5.5KVA, 1ph: 1ph, 192V iMAXX SERIES
₹75,899₹96,490
ON LINE UPS 5.5KVA, 1ph: 1ph, 192V iMAXX SERIES is an online double-conversion UPS rated at 5.5 KVA. It protects servers, networking and other critical equipment with clean, zero-transfer-time power. Buy it from Nice Power System in Ashok Vihar with home installation and on-site service & AMC across Delhi NCR.
Product Details
Technical Specifications
| MODEL | ONLINE UPS 5.5KVA 1PH:1PH 192V |
|---|---|
| CAPACITY | 5.5 KVA / 4.4 KW |
| DC VOLTAGE SYSTEM | DEFUALT : 192 VDC, ADJUSTABLE : 216 VDC |
| PHASE | SINGLE PHASE WITH GROUND |
| NOMINAL VOLTAGE | 208VAC / 220VAC / 230VAC |
| ACCEPTABLE VOLTAGE RANGE | 165~285 VAC |
| FREQUENCY RANGE | 40Hz~55Hz @50Hz System |
| AC VOLTAGE REGULATION | +1% (BATTERY MODE) |
| FREQUENCY RANGE | Mains Mode (Syncronized Range) : 45Hz~55Hz, Battery Mode : 50Hz~0.1Hz |
| AC to DC MODE | ZERO |
| INVERTRE to BYPASS MODE | ZERO |
| BYPASS to INVERTER MODE | <5ms |
| BATTERY MODE | PURE SINEWAVE |
| AC MODE / BATTERY MODE | 87%/91% |
| RECOMMEDED BATTERY TYPE | DEFAULT: VRLA/SMF BatteryTUBLAR BATTERY : OK (With Charger Cut-Off Voltage Ajustable From LCD Display) |
| BATTERY CHARGING AMP. | 2/4/8 AMP. (Default:8 AMP) |
| No. OF BATTERIES | 16/18 Batteries |
| LCD DISPLAY | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode & Fault Indicators. |
| ALARM | BATTERY MODE: Sounding every 4sec, LOW BATTERY: Sounding every second,OVERLOAD: Sounding twice every sound, FAULT:Continuously Sounding. |
| RS-232 / USB & OPTIONAL SNMP | Supports Windows® 2000/2003/XP/VISTA/2008/7/8, LINUX and MAC |
| DIMENTIONS PRODUCT (LxWxH) | 562x250x830 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 62.0 Kgs. |
