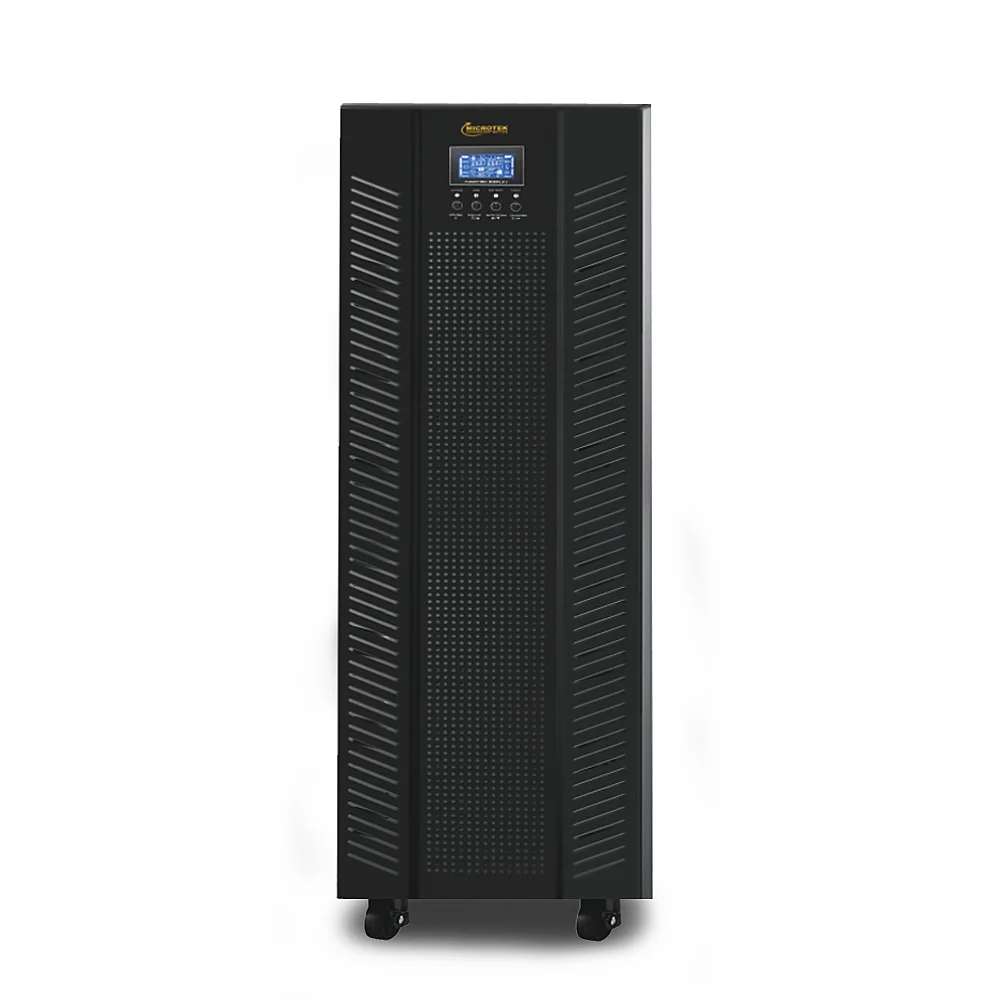

ON LINE UPS 10KVA 1PH:1PH 192V MAX+
₹1,09,264
Shop the On-Line UPS 10kVA 1Ph 192V MAX for superior power backup and efficiency. Perfect for high-demand environments. Buy now!
Product Details
Technical Specifications
| CAPACITY | 10000VA/8000W |
|---|---|
| DC VOLTAGE | Default= 192DCAdjustable= 216VDC & 240 VDC |
| PHASE | 1 PHASE IN ~ 1 PHASE OUT |
| NOMINAL VOLTAGE | 208/220/230/240 VAC |
| VOLTAGE RANGE | 110~300VAC + 3% at 50% Load176~300VAC+ 3% at 100% Load |
| FREQUENCY RANGE | 46~54 Hz |
| POWER FACTOR | > 0.99 @ 100% Load |
| TOTAL HARMONIC DISTORTION THD(!) | <4% @ 100% Load<6% @ 50% Load |
| OUTPUT POWER FACTOR | Default = 0.8, Optional = 0.9 with Battery, 1 With 20-Battery |
| NOMINAL VOLTAGE | 280*/220/230/240 VAC |
| AC VOLTAGE REGULATION | + 1% (Battery Mode) |
| FREQUENCY RANGE | 46~54Hz (Synchronized Range)50Hz + 0.1 Hz (Battery Mode) |
| CURRENT CREST RATIO | 3:1 (Max) |
| HARMONIC DISTORTION | < 1% THD (Linear Load) : < 4% THD (Non-Linear Load) |
| OVERLOAD CAPABILITY | AC MODE : 100%-110% : 10Min ; 110%-130%:1Min ; >130% : 1SecBATTERY MODE : 100%-110% : 30Sec ; 110%-130% : 10Sec ; >130%: 1Sec |
| AC MODE TO BATTERY MODE | ZERO |
| INVERTER TO BYPASS | ZERO |
| WAVEFORM (BATTERY MODE) | PURE SINE WAVE |
| EFFICIENCY | AC MODE: 94% , BATTERY MODE: 91% |
| BATTERY TYPE | VRLA / SMF |
| NUMBERS OF BATTERY | Default: 16 Nos. - Adjustable: 18 & 20 Nos. |
| CHARGING CURRENT (MAX.) | 4.0 A |
| CHARGING VOLTAGE | (13.65 VDC x Battery Number) + 1% |
| DIMENTIONS PRODUCT (LxWxH) | 555x250x830 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 33.0 Kgs. |
| OPERATING HUMIDITY / TEMP. | 20-90% RH & Non-Condersing / 0.40°C |
| NOISE LEVEL | Less Than 58dB @ 1 Meter |
| LCD INDICATION | UPS Status, Load Leval, Battery Level, Input/Output Volate, Input/Optpur Freq. / Discharge Timer / Fault Status |
| SMART RS-232 OR USB | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10 Linux & Mac |
| OPTIONAL SNMP | Power Management From SNMP Manager and Web Browser |
