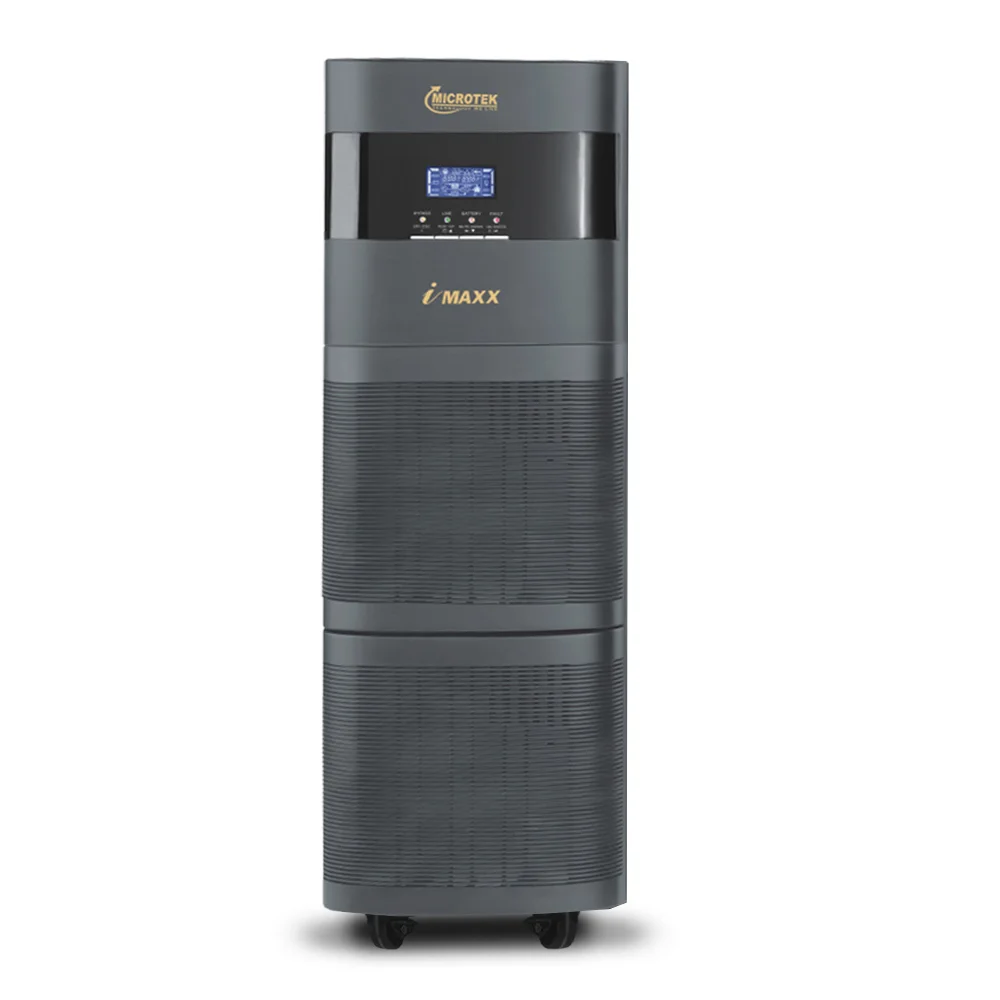

ON LINE UPS 10KVA, 1ph: 1ph, 192V iMAXX SERIES
₹1,41,348
Buy the On-Line UPS 10kVA 1Ph 192V iMAXX Series for top-notch power protection. Reliable and efficient backup solutions. Shop online today!
Product Details
Technical Specifications
| Model | i-MAXX 10KVA/192V |
|---|---|
| Phase | Single Phase with Ground |
| Capacity | 10KVA /8KW |
| MODEL | i-MAXX TRANSFORMER BASED ONLINE UPS |
| CAPACITY | 10.0 KVA / 8.0 KW |
| DC VOLTAGE SYSTEM | DEFUALT : 192 VDC, ADJUSTABLE : 216 VDC |
| PHASE | SINGLE PHASE WITH GROUND |
| NOMINAL VOLTAGE | 208VAC / 220VAC / 230VAC |
| ACCEPTABLE VOLTAGE RANGE | 165~285 VAC |
| FREQUENCY RANGE | 40Hz~55Hz @50Hz System |
| AC VOLTAGE REGULATION | +1% (BATTERY MODE) |
| FREQUENCY RANGE | Mains Mode (Syncronized Range) : 45Hz~55Hz ,Battery Mode : 50Hz~0.1Hz |
| AC to DC MODE | ZERO |
| INVERTRE to BYPASS MODE | ZERO |
| BYPASS to INVERTER MODE | <5ms |
| BATTERY MODE | PURE SINEWAVE |
| AC MODE / BATTERY MODE | 87%/91% |
| RECOMMEDED BATTERY TYPE | DEFAULT: VRLA/SMF BatteryTUBLAR BATTERY : OK (With Charger Cut-Off Voltage Ajustable From LCD Display) |
| BATTERY CHARGING AMP. | 2/4/8 AMP. (Default:8 AMP) |
| No. OF BATTERIES | 16/18 Batteries |
| LCD DISPLAY | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode & Fault Indicators. |
| ALARM | BATTERY MODE: Sounding every 4sec, LOW BATTERY: Sounding every second,OVERLOAD: Sounding twice every sound, FAULT:Continuously Sounding. |
| RS-232 / USB & OPTIONAL SNMP | Supports Windows® 2000/2003/XP/VISTA/2008/7/8, LINUX and MAC |
| DIMENTIONS PRODUCT (LxWxH) | 562x250x830 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 86.0 Kgs. |
