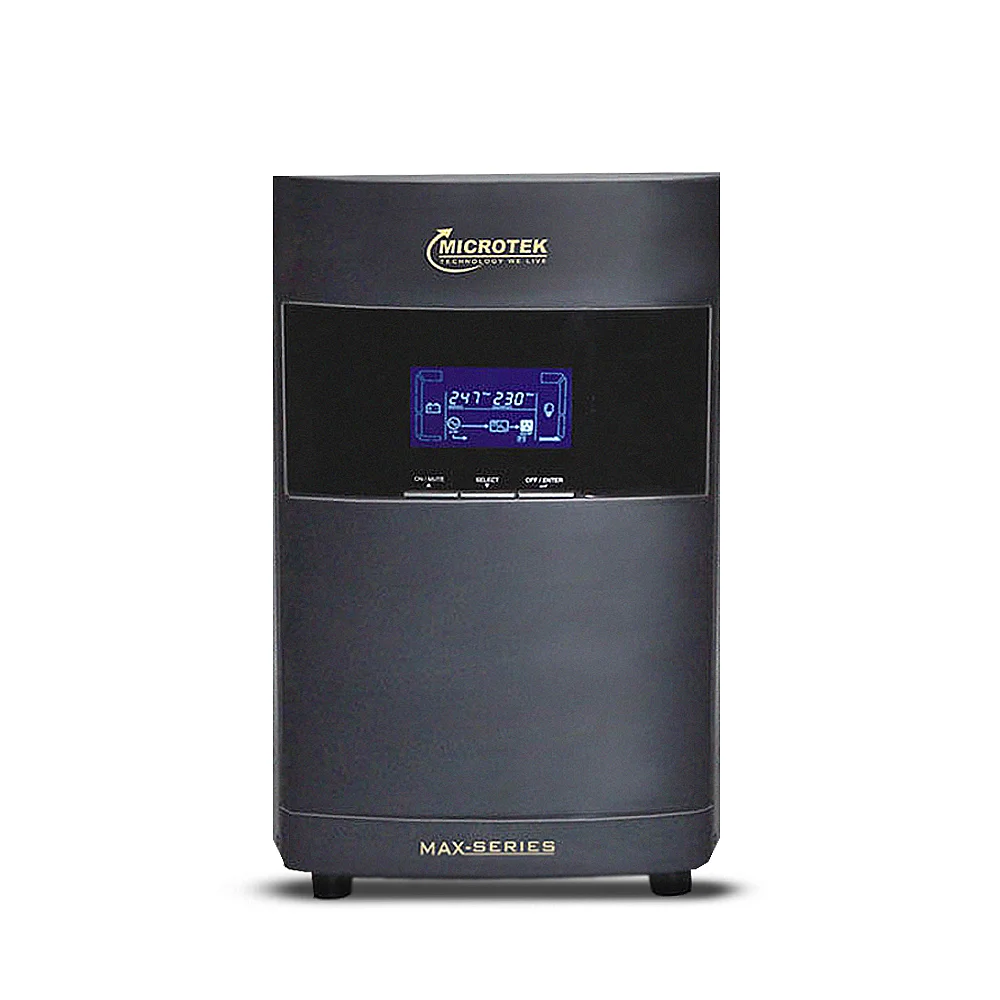

ON LINE UPS 3KVA 1PH:1PH 72V-IB MAX+
₹47,634₹49,390
Buy the Online UPS 3kVA IB-MAX for robust power protection and efficiency. Perfect for various power needs such as toll plaza, ATM, Airport. Shop now!
Product Details
Technical Specifications
| MODEL | ONLINE UPS 3KVA (IB) 1PH:1PH 72V |
|---|---|
| RATED CAPACITY | 3 KVA / 2700 Watts |
| INPUT VOLTAGE RANGE (Load <50%) | 118 ~ 295 V (± 5 V) |
| INPUT VOLTAGE RANGE (Load >50%) | 160 ~ 295 V (± 5 V) |
| FREQUENCY | 40 ~ 70 Hz |
| PHASE | Single Phase with Ground |
| POWER FACTOR | ≥ 0.99 @ full load |
| OUTPUT VOLATGE RANGE | 208 / 220 / 230 / 240 V AC |
| FREQUENCY RANGE (Synchronized Range)FREQUENCY RANGE (Battery Mode) | 47 ~ 53 Hz or 57 ~ 63 Hz50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| THD (Linear Load) | ≤2% |
| THD (Non Linear Load) | ≤4% |
| OVERLOAD | >110%, 30s turn to Bypass Mode>150% instant turn to Bypass |
| CREST FECTOR | 3:1 (Max) |
| SHORT CIRCUIT PROTECTION | 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action |
| WAVEFORM | Pure Sinewave |
| TRANSFER TIME (AC Mode to Battery Mode) (Inverter to Bypass) | ZERO <4 ms |
| EFFECIENCY | 85%~ 92% |
| DC VOLTAGE | 72 V(7 AH* 6 Nos. Battery inside) |
| CHARGE CURRENT | 1.5 Amps |
| COMMUNICATION INTERFACE | RS232,SNMP (Optional) |
| INDICATION | LCD Display |
| NOISE LEVAL | Less than 50dBA @ 1 Meter (With Fan Speed Control) |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| WARRANTY | Two Years on Electronics & One Year on Battery |
