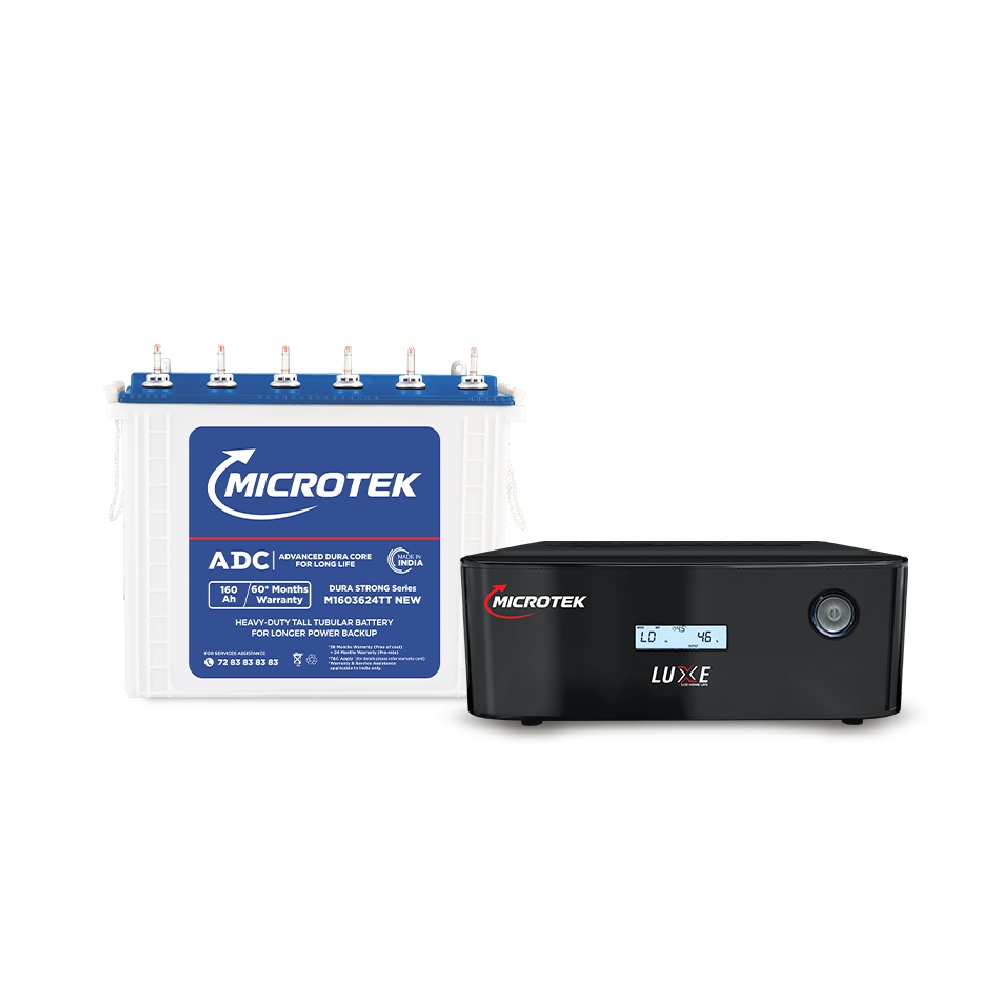

LUXE NEW 1200 (950 VA / 12 V Pure Sine Wave) Inverter with M1603624TT 160 Ah / 12 V Battery Combo
₹22,486₹32,090
Pure Sine Wave Inverter (950 VA / 12 V) – Delivers stable and safe power for sensitive electronics.
Product Details
Technical Specifications
| Item | Details |
|---|---|
| Backup Estimate | 5–6 hours at ~300 W load (may vary by usage & discharge depth). |
| Recommended Load | Fans, lights, LED TVs, laptops, routers, CCTV, small appliances. |
| Unsuitable Loads | Not designed for ACs, refrigerators, heaters, microwaves, or motors beyond capacity. |
| Installation Tips | Use short, thick copper wires; install in ventilated space; keep battery upright. |
| Maintenance | Regular electrolyte level checks (if not factory-sealed); clean and grease terminals. |
| Safety Precautions | Ensure room ventilation to disperse battery gases; keep away from flames/sparks. |
| Warranty Support | Microtek service centers available pan-India; retain invoice for claims. |
| Component / Subsystem | Specification |
| Inverter Model / Type | Microtek LUXE NEW 1200 |
| Rated Capacity | 950 VA / ~760 W |
| Input Voltage Range (Inverter Mode) | 100 V – 300 V |
| UPS Mode Input Range | 180 V – 260 V |
| Output Voltage / Frequency | 210 V ±10%, 50 Hz ±0.1 Hz |
| Output Waveform | Pure Sine Wave |
| Efficiency | ~80% |
| Battery Model / Type | Microtek M1603624TT |
| Battery Capacity | 160 Ah, 12 V |
| Battery Warranty | 60 Months (36 months flat + 24 months pro-rata) |
| Battery Dimensions / Weight | Approx. 520 × 279 × 283 mm; ~54 kg |
| Protection Features | Overload, short-circuit, deep discharge, overcharge cut-off |
