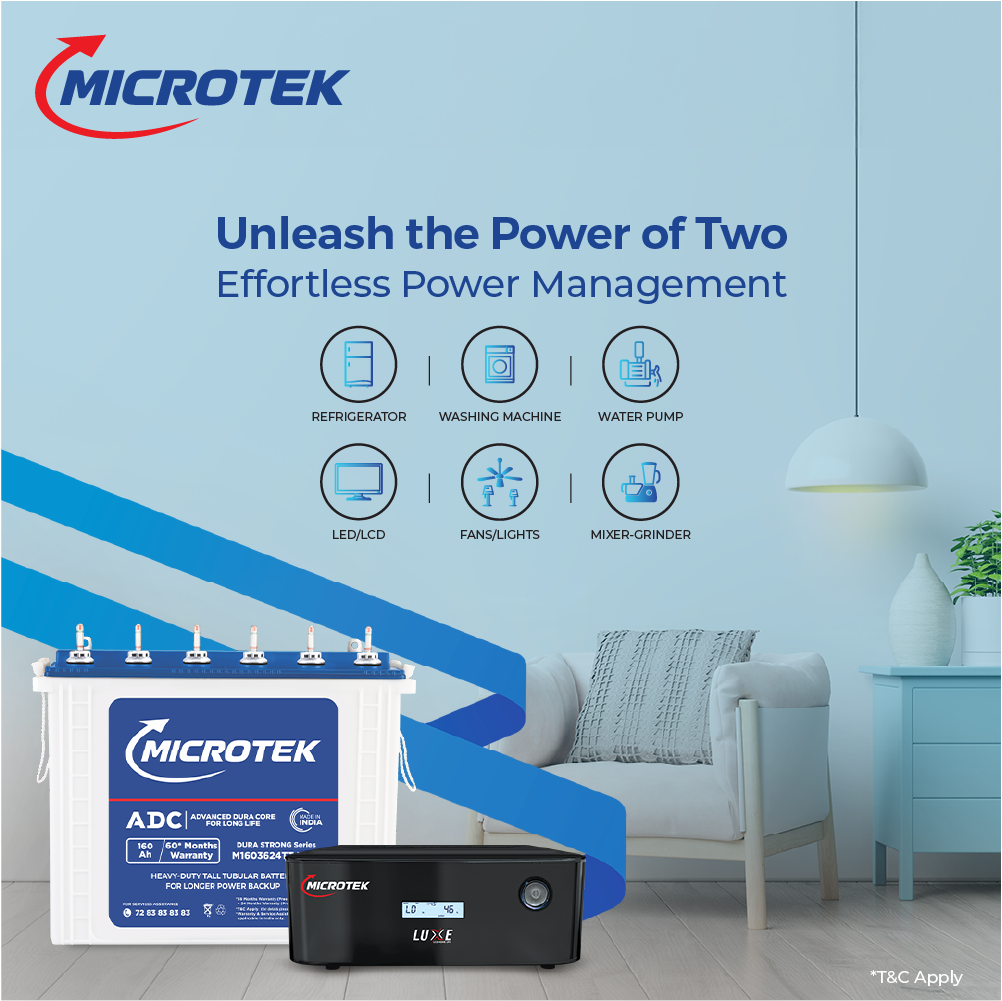

LUXE NEW 1000 12 V Pure Sine Wave Inverter + M1603624TT 160 Ah / 12 V Battery Combo
₹21,820₹29,890
Pure sine wave output — safe for laptops, LED TVs, home theatre systems, and sensitive electronics
Product Details
Technical Specifications
| Item | Details |
|---|---|
| Backup Duration Estimate | With 300 W load: ~5–6 hours in ideal conditions. Actual runtime will be lower due to inverter losses & safe depth of discharge. |
| Depth of Discharge (DoD) | Recommended to use 50–70 % regularly to extend battery life. |
| Cabling & Installation | Use thick copper cables, proper fuses/MCB, and short connections to minimize losses. |
| Ventilation | Install the battery in a well-ventilated space to prevent gas buildup. |
| Maintenance | Periodic electrolyte level checks (if not factory-sealed). Keep terminals clean and corrosion-free. |
| Suitable Applications | Homes, offices, and shops needing backup for fans, lights, TVs, laptops, routers, small appliances. |
| Unsuitable Loads | Not recommended for heavy appliances like ACs, heaters, microwaves, or pumps exceeding the 640–760 W limit. |
| Warranty / Support | Ensure invoice and product registration for claiming Microtek’s service support. |
| Component / Subsystem | Specification |

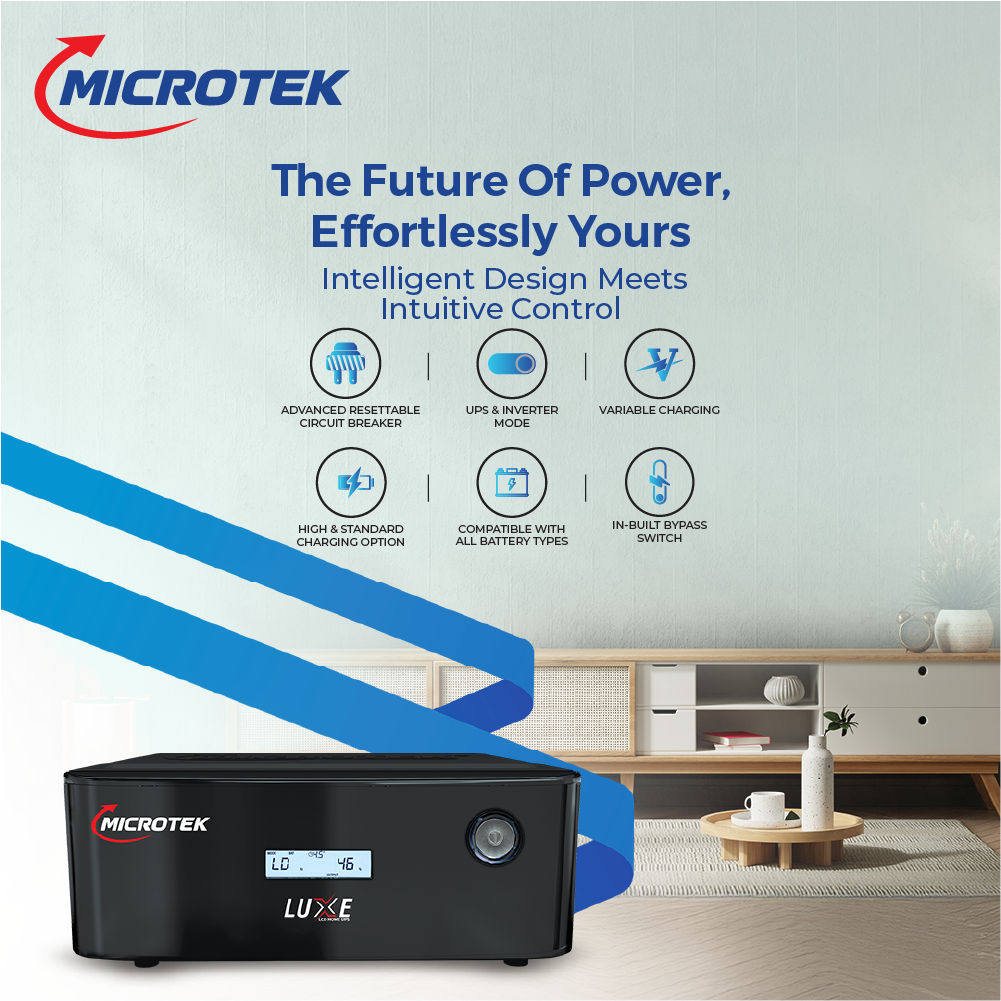

| Inverter Model / Type | Microtek LUXE NEW 1000 (Pure Sine Wave) |
| Rated Capacity | 800 VA / ~ 640 W |
| Surge / Peak Capacity | Up to 950 VA / 760 W |
| Input Voltage Range (Inverter Mode) | 100 V – 300 V |
| UPS / Bypass Mode Input Range | 180 V – 260 V |
| Output Voltage / Frequency | 210 V ±10%, 50 Hz ±0.1 Hz |
| Output Waveform | Pure Sine Wave |
| Efficiency | ~ 80 % |
| Battery Requirement | 1 × 12 V battery (100–200 Ah supported) |

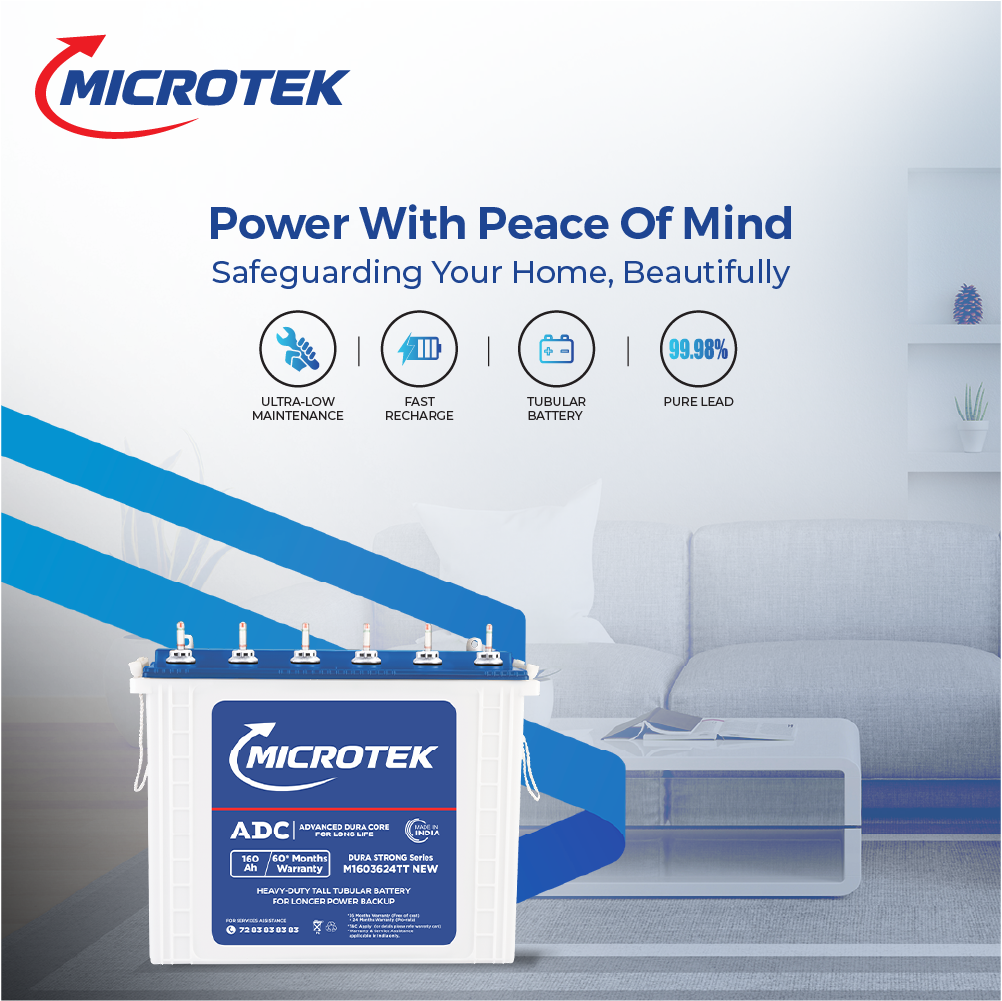

| Battery Model / Type | Microtek M1603624TT |
| Battery Capacity | 160 Ah, 12 V |
| Battery Warranty | 60 months (36 months flat + 24 months pro-rata) |
| Battery Dimensions / Weight | ~ 520 × 279 × 283 mm, ~ 54 kg |
| Charging & Protection Features | 5-stage charging, auto overload/short-circuit protection, overcharge/over-discharge cut-off |
